In today's rapidly evolving world, everything from electronic components to automotive parts requires rigorous testing in controlled temperature and humidity environments.

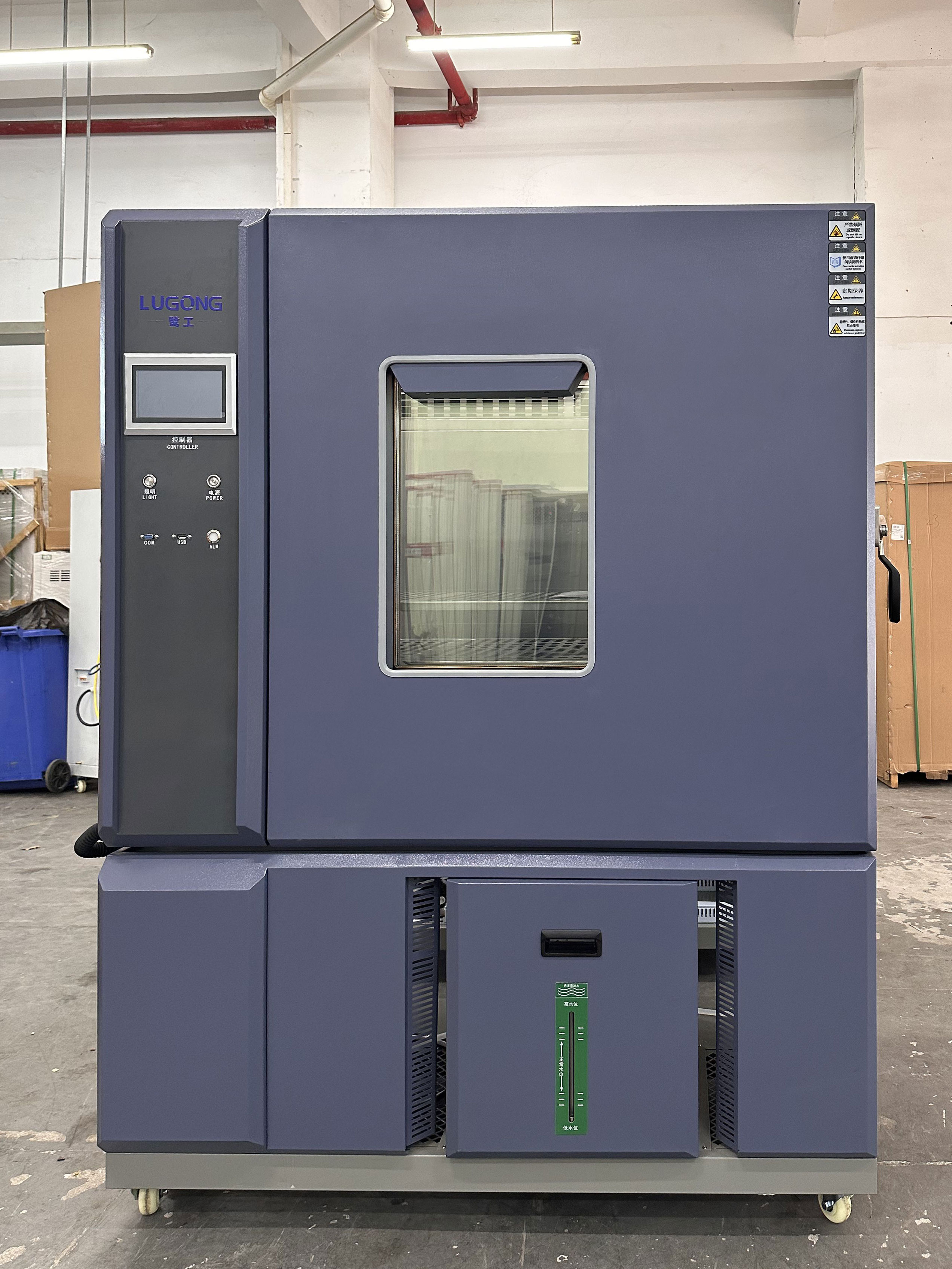

Temperature and humidity chambers are essential tools for these tests. Also known as environmental test chambers, temperature and humidity chambers can simulate a variety of environmental conditions to evaluate product performance in diverse environments.
In the electronics industry, temperature and humidity chambers are commonly used to test chips, connectors, solder joints, and various electronic components to verify their adaptability to varying temperature and humidity fluctuations. Furthermore, in the automotive industry, these chambers are widely used to test engine parts, electrical systems, and body structures to assess their reliability in harsh climates.
In addition to the electronics and automotive industries, the pharmaceutical, aerospace, defense, and telecommunications sectors also rely on temperature and humidity chambers to verify product reliability in variable climates. Research institutions also use these chambers to study the effects of temperature and humidity on the quality of new materials.
How a Temperature and Humidity Chamber Works
A temperature and humidity chamber creates a controlled temperature and humidity environment to evaluate how materials and products react to temperature fluctuations and humidity changes. These chambers utilize sophisticated heating, cooling, humidification, and dehumidification systems to maintain stable conditions, ensuring accurate and repeatable test results. Their primary operating mechanisms include the following:
1. Temperature Control
For heating, the temperature and humidity chamber primarily uses a heating system to raise the internal temperature to simulate a high-temperature environment. For cooling, a cooling system or thermoelectric cooler is used to simulate a low-temperature environment. Furthermore, an advanced PID controller precisely regulates temperature fluctuations, effectively preventing temperature fluctuations and ensuring a stable test environment and accurate test results.
2. Humidity Control
For humidification, the temperature and humidity chamber primarily uses a humidifier to inject water vapor into the chamber to increase the air humidity. Common methods include steam humidification and ultrasonic atomization.
When humidity needs to be lowered, a dehumidification system removes moisture from the air to maintain a low-humidity environment, simulating product performance under dry conditions. Common dehumidification methods include condensation dehumidification and dehumidification with desiccant agents.
Meanwhile, humidity sensors monitor humidity changes within the chamber in real time and feed data back to the control system, ensuring precise humidification and dehumidification operations and maintaining the desired humidity environment.
3. Air Circulation System
The temperature and humidity chamber uses a fan and airflow system to uniformly circulate air within the chamber. The fan propels air along a specific path, while the carefully designed airflow system ensures uniform air flow throughout the chamber, rapidly distributing temperature and humidity levels and avoiding localized variations.
4. Test Cycle Programming and Automation
Most modern temperature and humidity chambers are equipped with programmable controllers (PLCs), allowing users to customize temperature and humidity program changes and implement multi-stage, multi-cycle testing. The controller supports ramp control, allowing precise setting of the rate at which temperature and humidity increase or decrease, ensuring that experimental conditions meet design requirements. The chamber is also equipped with a data logging system that monitors and records temperature and humidity changes in real time, providing reliable data for subsequent analysis, quality assessment, and product optimization.
Basic Functions of a Temperature and Humidity Chamber
1. Temperature Simulation
The temperature and humidity chamber can simulate a wide range of temperature conditions, from extremely low to high. The device supports constant temperature control, maintaining a constant set temperature, and temperature cycling, smoothly switching between different temperatures according to a pre-set program.
2. Humidity Simulation
The temperature and humidity chamber can simulate a wide range of humidity conditions, from low to high. The device can maintain a constant humidity level through a humidification and dehumidification system, or it can cycle humidity levels according to a pre-set program. Furthermore, the system can rapidly adjust the humidity level and ensure uniform humidity distribution within the chamber, maintaining an overall stable environment.
3. Environmental Simulation
The temperature and humidity chamber can simultaneously control both temperature and humidity, generating a variety of climate combinations, such as high temperature and high humidity, or low temperature and low humidity. Control can also be combined with other environmental factors such as vibration and light to achieve more complex, comprehensive environmental simulations.
4. Cyclic Testing
The temperature and humidity chamber can perform temperature and humidity cycling tests within a set range. The device supports alternating hot and cold cycles, alternating wet and dry cycles, and combined temperature and humidity cycling tests. The cyclic testing function allows users to continuously test products or materials under varying conditions to verify their durability and stability.
5. Accelerated Aging
The device can continuously or cyclically adjust temperature and humidity according to a programmed program to accelerate the aging process of materials, components, and other products under extreme conditions. This rapid change capability allows users to simulate long-term operating environments in a short period of time, helping to assess product lifespan and providing data support for R&D and quality control.
Temperature and humidity chamber selection criteria
Temperature and humidity chambers come in a variety of sizes and functions to meet a wide range of testing needs. When selecting the right temperature and humidity chamber, consider factors such as size, humidity control, temperature range, and test speed. The following are key criteria for selecting a temperature and humidity chamber:
1. Size
Temperature and humidity chambers come in a variety of sizes, ranging from small benchtops for compact testing to walk-in chambers capable of accommodating large production runs. When selecting a chamber, determine the most appropriate chamber size based on the volume and number of samples being tested, as well as the lab space.
2. Humidity Control
Most humidity control tests are performed under high temperature and high humidity conditions, for example, 80°C/85%. In some cases, low humidity testing is also required. Temperature and humidity chambers typically offer a humidity range of 20% to 95% RH. When selecting a chamber, determine the required humidity range based on your experimental needs. Furthermore, some applications do not require humidity testing, and purchasing a chamber without a humidity control unit can save costs.
3. Temperature Range
Temperature and humidity chambers offer a wide temperature range, covering extreme low temperatures to high temperatures. The specific temperature range varies by model. Some chambers can reach temperatures as low as -70°C (-94°F) or as high as +180°C (+356°F) or even higher. When selecting a chamber, the required temperature range should be determined based on your experimental requirements.
4. Temperature Cycling Rate
Heating and cooling rates vary depending on the type of temperature and humidity chamber. Some chambers are specifically designed for rapid temperature changes. Faster heating rates can shorten testing time, leading to faster testing and faster identification of product defects. When selecting a chamber, the required temperature cycling rate should be determined based on your testing needs and objectives.
5. Site Constraints
Site constraints are an important factor to consider when purchasing a temperature and humidity chamber. The spatial layout, power supply, and ventilation conditions of the experimental site can limit the size of the equipment. Therefore, before purchasing, it is important to thoroughly evaluate the installation environment to ensure smooth operation of the equipment.
Conclusion
Temperature fluctuations and humidity changes can significantly impact product performance and lifespan. A temperature and humidity chamber can help you simulate these conditions in a controlled environment, ensuring your materials, components, and finished products meet industry standards and actual requirements. When selecting the right equipment, consider factors such as size, humidity control, temperature range, and test speed.
If you're looking for a temperature and humidity chamber, please contact Xiamen LUGONG Testing Instruments Co., Ltd. to design a custom solution tailored to your needs.
FAQs about Temperature and Humidity Chambers
1. What Are the Different Types of Temperature and Humidity Chambers?
Temperature and humidity chambers include benchtop, walk-in, and drive-in chambers.
Benchtop temperature and humidity chambers are compact and fit well on a lab bench. They are suitable for routine testing of small samples and components.
Walk-in temperature and humidity chambers are larger and are suitable for testing batches and large-volume products.
Drive-in temperature and humidity chambers are larger than walk-in chambers and can accommodate entire vehicles and complete units, enabling environmental adaptability testing of full-scale products.
2. How Is a Temperature and Humidity Chamber Transported?
The transportation of a temperature and humidity chamber must be arranged based on the size and weight of the equipment to ensure it is not damaged during transport. It is recommended that you discuss specific transportation methods with the supplier before purchasing.
3. How Much Power Does a Temperature and Humidity Chamber Require?
The power consumption of a temperature and humidity chamber depends on the size of the equipment, the temperature and humidity range, and the cycle rate. Small desktop equipment typically consumes around 1–3 kW, while large walk-in units may reach 10 kW or more.
4. How Are Temperature and Humidity Chambers Heated and Cooled?
Temperature and humidity chambers use built-in heaters (such as resistance heaters or infrared heaters) to increase temperature and cooling systems (such as compressors) to precisely control the temperature inside the chamber.
5. What Industries Are Temperature and Humidity Chambers Commonly Used In?
Temperature and humidity chambers are commonly used in industries such as electronics, semiconductors, automotive parts, aerospace, pharmaceuticals, defense, telecommunications, and new energy batteries to verify product performance and reliability under varying temperature and humidity conditions.
