What Is An Ozone Aging Test Chamber?

Ever wondered how manufacturers test the durability of rubber or plastics under harsh conditions? The ozone aging test chamber is a key tool for that. It mimics ozone-rich environments to check how materials hold up over time. If you’re in quality control, product design, or just curious about testing tech, this guide’s for you. We’ll walk through the working process, break it down into clear stages, and share tips to get it right. Let’s dive in and see how this machine keeps your products tough.

What Is an Ozone Aging Test Chamber?

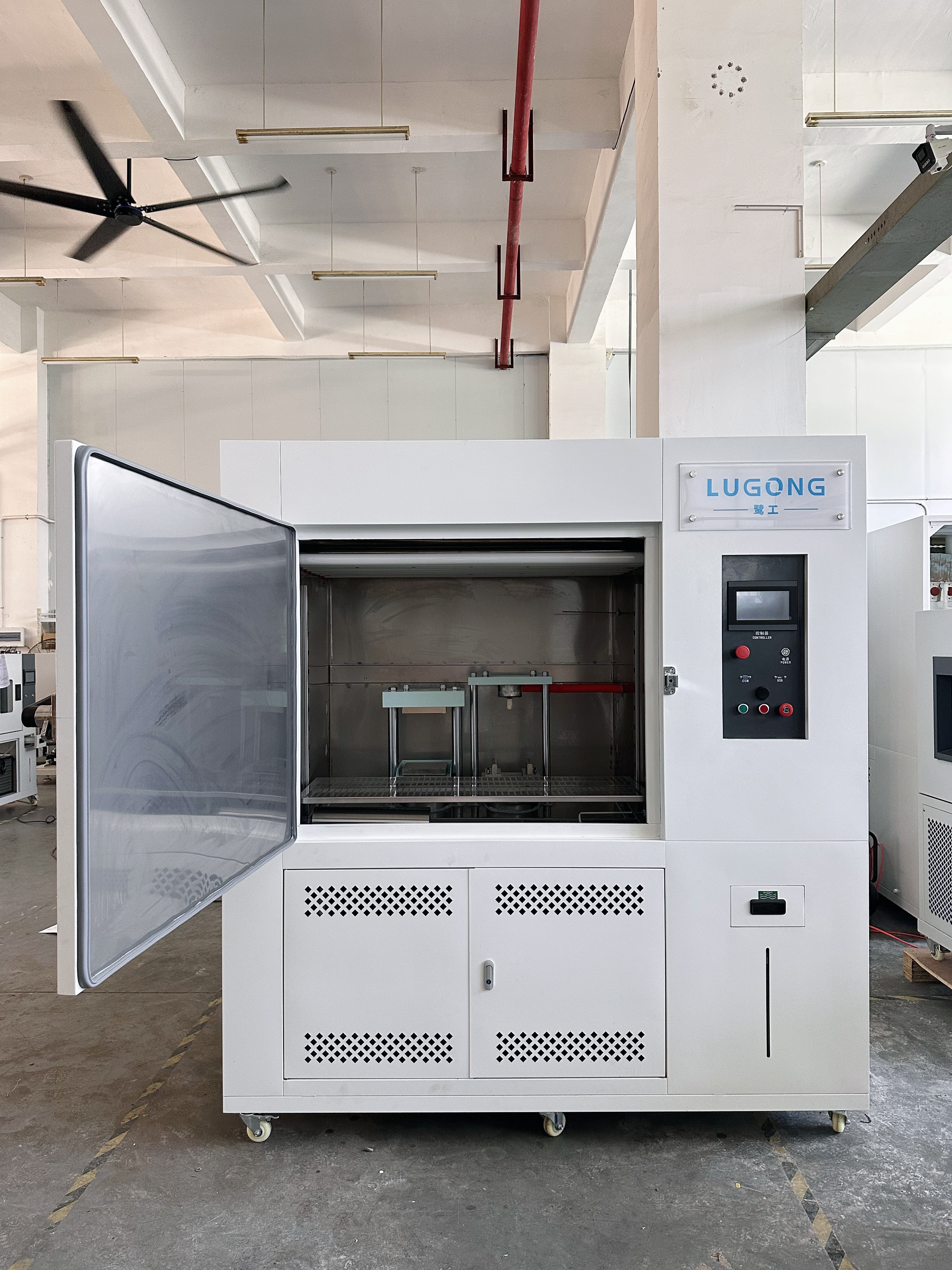

An ozone aging test chamber is a specialized piece of equipment. It exposes materials to controlled ozone levels to simulate long-term exposure. Ozone, a reactive gas, attacks rubber and polymers, causing cracks or fading. This test predicts how products like tires, seals, or cables will fare outdoors.

Why care? For industries like automotive or construction, material failure means safety risks or costly recalls. The chamber speeds up natural aging—months in days. Standards like ISO 1431-1 and ASTM D1149 guide its use, ensuring consistent results. Knowing its purpose sets the stage for understanding the working process.

The Working Process Unveiled

The ozone aging test chamber follows a structured flow. Each step builds on the last to deliver reliable data. Here’s how it unfolds.

Step 1: Preparation and Setup

First things first—get the samples ready. Clean them to remove dirt or oils that could skew results. Cut pieces to fit the chamber, usually 2-3 inches square. Place them on racks, stretched or relaxed as needed, per test specs.

Set the chamber’s conditions next. Dial in the ozone concentration—typically 50 to 200 pphm (parts per hundred million). Temperature sits around 40°C, mimicking warm climates. Humidity might range from 50-70%, depending on the standard. Secure the door tight—no leaks allowed.

Sample Tips: Use gloves to avoid fingerprints.

Condition Check: Verify sensors with a calibration check.

Safety Note: Wear protective gear; ozone irritates lungs.

This stage takes 15-30 minutes, depending on sample count.

Step 2: Ozone Generation

Now, the chamber creates ozone. An ozone generator inside uses electrical discharge or UV light to split oxygen (O₂) into single atoms. These pair with more oxygen to form O₃—ozone. A control system adjusts output to match your set level.

Flow rate matters. Air pumps circulate the gas evenly through the chamber. Too slow, and ozone pools unevenly. Too fast, and it escapes. Most units handle 10-20 liters per minute. A purifier removes excess ozone post-test to keep the lab safe.

This step runs continuously during the test, monitored by sensors.

Step 3: Exposure and Testing

The real work begins here. Samples sit in the ozone-rich environment. Duration varies—24 hours to 168 hours (a week)—based on material and standard. The chamber holds steady conditions throughout.

Ozone reacts with double bonds in rubber, breaking them down. Cracks form, especially under strain. A dynamic test might stretch samples 20-30% to speed this up. Static tests keep them still for natural wear insight.

Log conditions hourly. Temp might drift 1-2°C; ozone levels, 5-10 pphm. Note any visual changes—color shifts or surface splits.

Step 4: Monitoring and Control

Keeping things stable is key. Sensors track ozone, temp, and humidity. A digital display or software logs data in real time. If levels drop, the generator kicks in. Overheat? A safety cutoff stops the run.

Manual checks help too. Peek through a window (if equipped) to spot early damage. Adjust airflow if mist builds up. Most chambers run unattended, but a quick glance every few hours catches issues.

This step runs the test’s full length, often 1-7 days.

Step 5: Completion and Analysis

Test done? Vent the chamber to clear ozone. Open it only after levels hit safe limits—below 0.1 ppm. Remove samples carefully; they’re fragile now.

Examine under a magnifying glass or microscope. Count cracks, measure depth. Compare to a control sample (untested material). Photos back up findings. Standards like ASTM D1171 rate severity from 0 (none) to 10 (severe).

Record everything—times, settings, observations. This data guides material tweaks or approvals.
