LUGONG
Product Introduction:

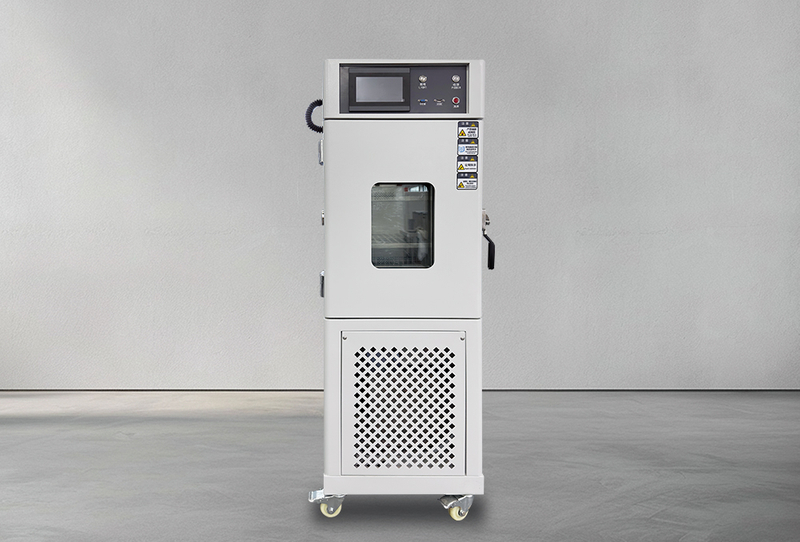

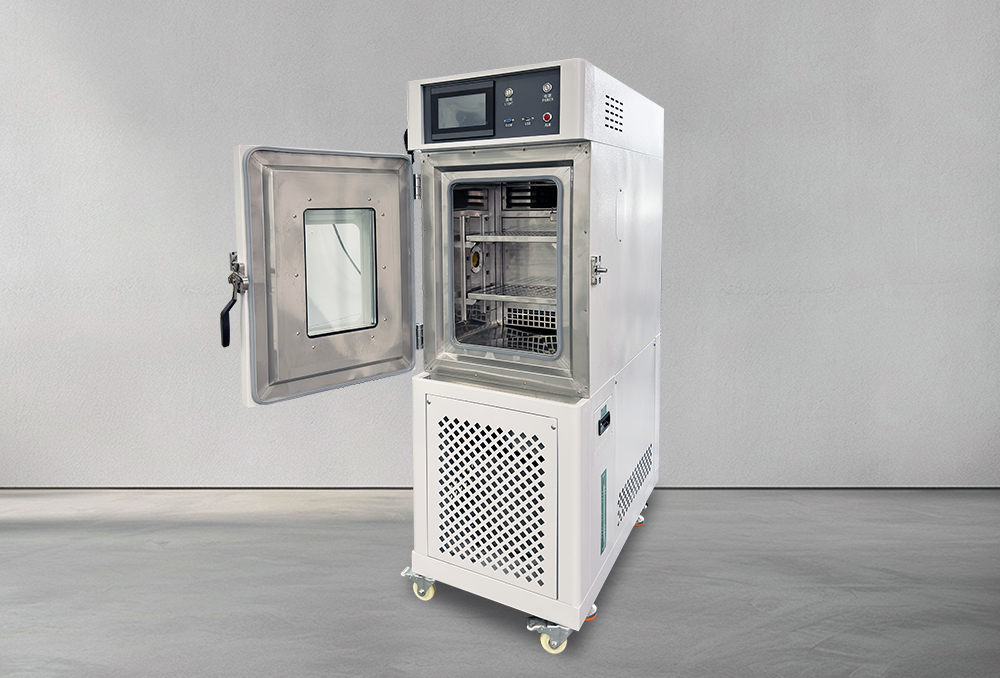

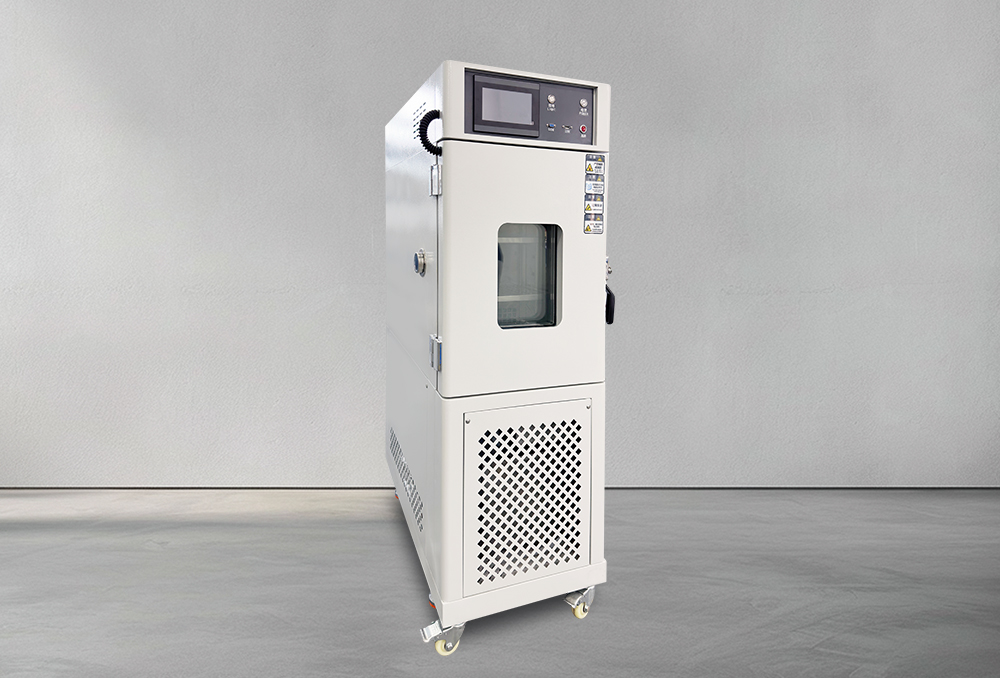

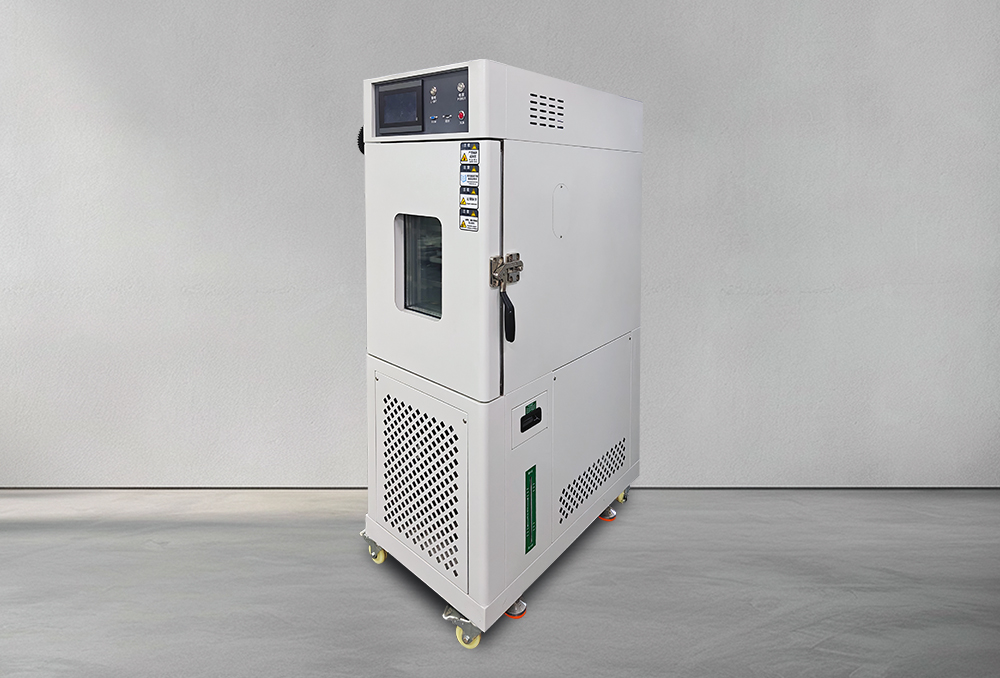

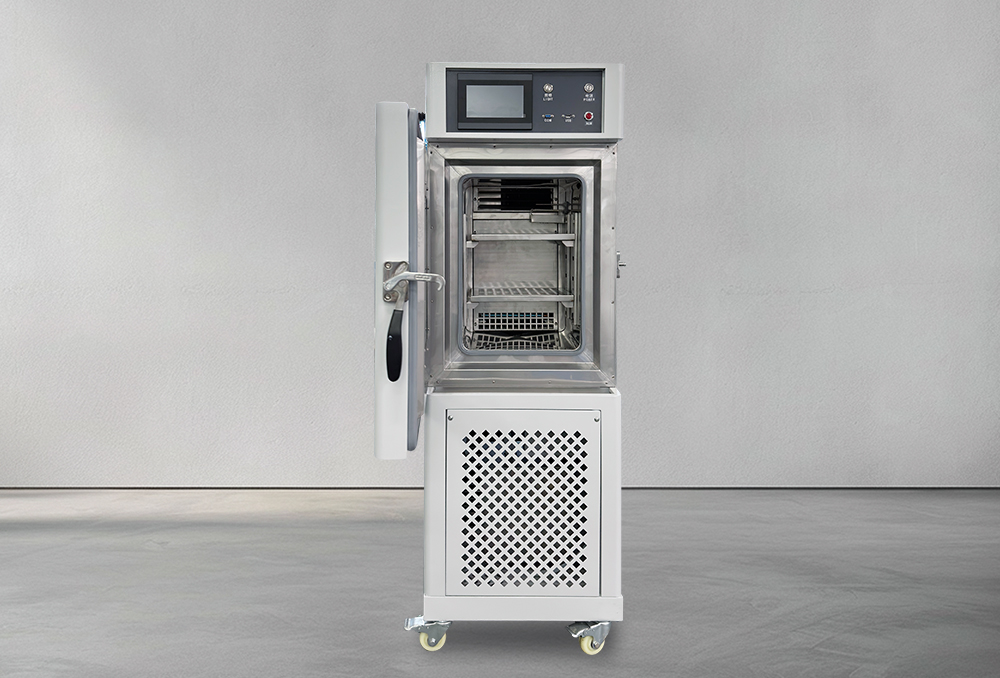

The narrow programmable constant temperature and humidity test chamber is mainly used to simulate harsh high-temperature environments, low temperature or damp heat environment that may be encountered in the transportation, storage and use of electronic instruments, new materials, electricians, vehicles, metals, electronic products, aerospace materials, etc.; or in the environment of high temperature, low temperature and alternating humidity and heat, inspect the high temperature, cold resistance, damp heat resistance of materials, accessories or instruments and equipment, and the reduction of the damage life that may be caused.
Test Standards:
1、GB2423.1-2008/IEC6008-2-1-2007
2、GB/T 2423.2-2008
3、GJB150.3A-2009
4、GJB150.4A-2009
5、GB2423.22-2008
6、GBT 2424.5-2006
7、GB/T 10589-2008
8、GB/T2423.3-2008(IEC68-2-3)
Technical Parameter
Model | LG-80ZD | LG-100ZD | LG-150ZD | ||
Nominal volume | 80L | 100L | 150L | ||
Inner box size | 400mm×400mm×500mm | 500mm×500mm×400mm | 500mm×600mm×500mm | ||
Dimensions | 650mm×1620mm×1135mm | 750mm×1620mm×1135mm | 750mm×1720mm×1255mm | ||
Technical Parameter | Temperature range | －70℃ ～ + 150℃ | |||
Control accuracy | Temperature resolution: 0.01°C Humidity resolution: 0.1%R.H Temperature deviation: ±0.5°C Humidity deviation: ±2%R.H Temperature uniformity: ≦ 2°C Humidity uniformity: ±3%R.H Temperature fluctuation: ±0.5°C Humidity fluctuation: ± 2%R.H | ||||
Temperature rise and fall rate | Heating time: -70°C → + 150°C average 3°C/min throughout the process | ||||
Cooling time: 150°C → -70°C average 1°C/min throughout the whole process | |||||
Security measures | The overall equipment is over-temperature, the fan is overheated and the overall equipment is under-phase/reversed-phase, the refrigeration system is overloaded, the refrigeration unit is overpressurized, the overall equipment is timed, the leakage is leakage, the operation indication, and the automatic shutdown after the fault alarm is protected | |
structure | Chassis enclosure | High-quality cold-rolled steel plate electrostatic spraying |
Chassis inner wall | SUS304# stainless steel plate | |
Thermal insulation | 100mm polyurethane rigid foam (or optional: high-density glass fiber wool above 150°C). | |
Standard configuration | φ50 test hole, illuminator, double-layer vacuum tempered glass observation window | |
weight | Approx. 220kg | |
current | 30A | |
Rated power | 6.1kw | |
power supply | Single-phase, 220V | |
