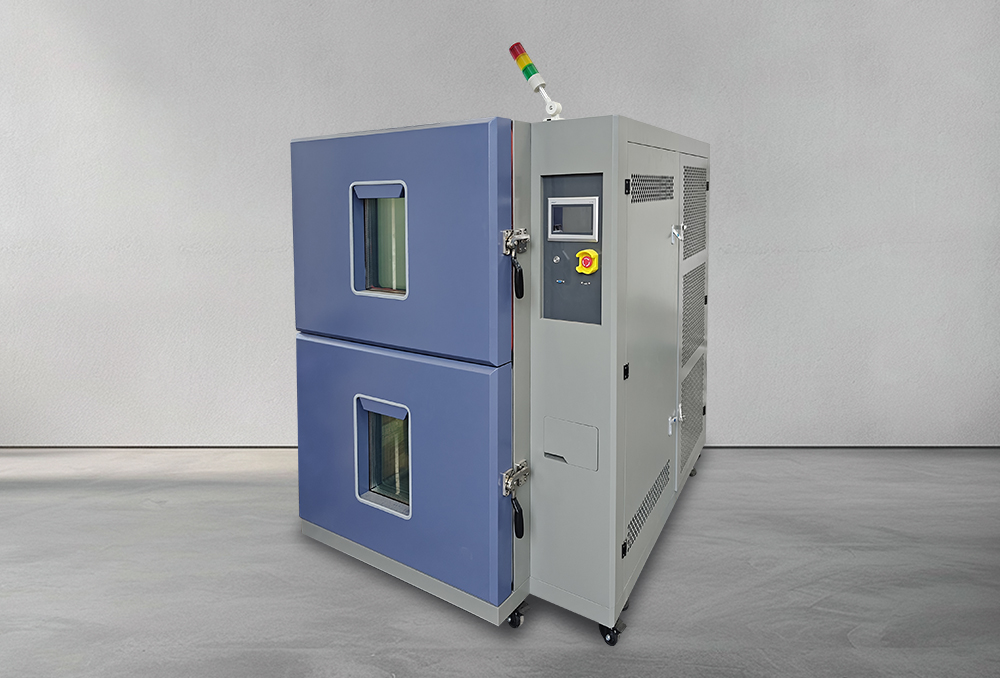

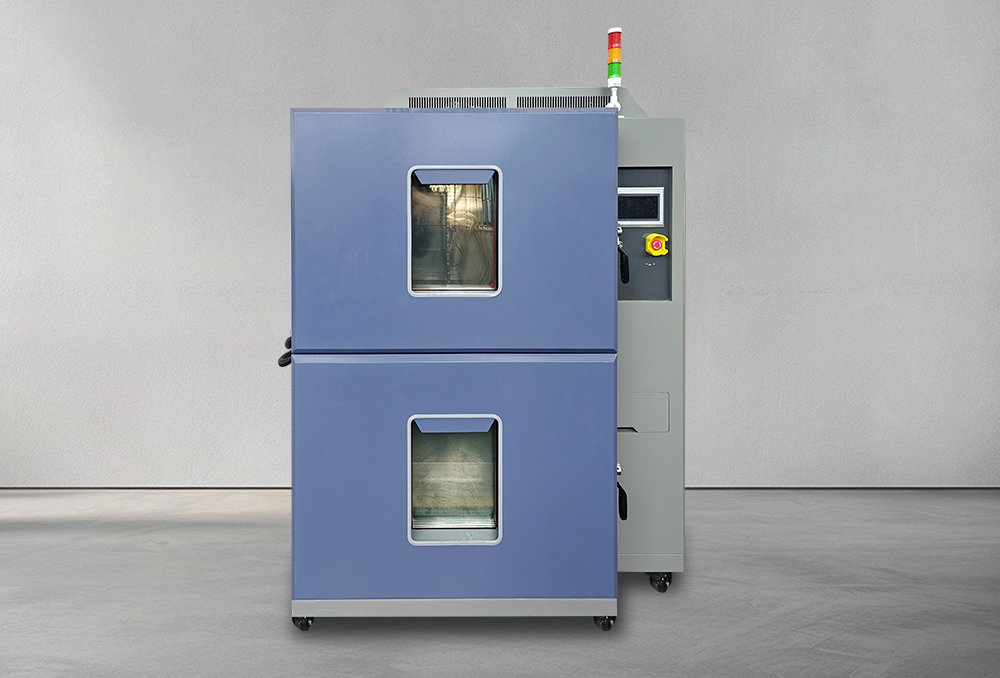

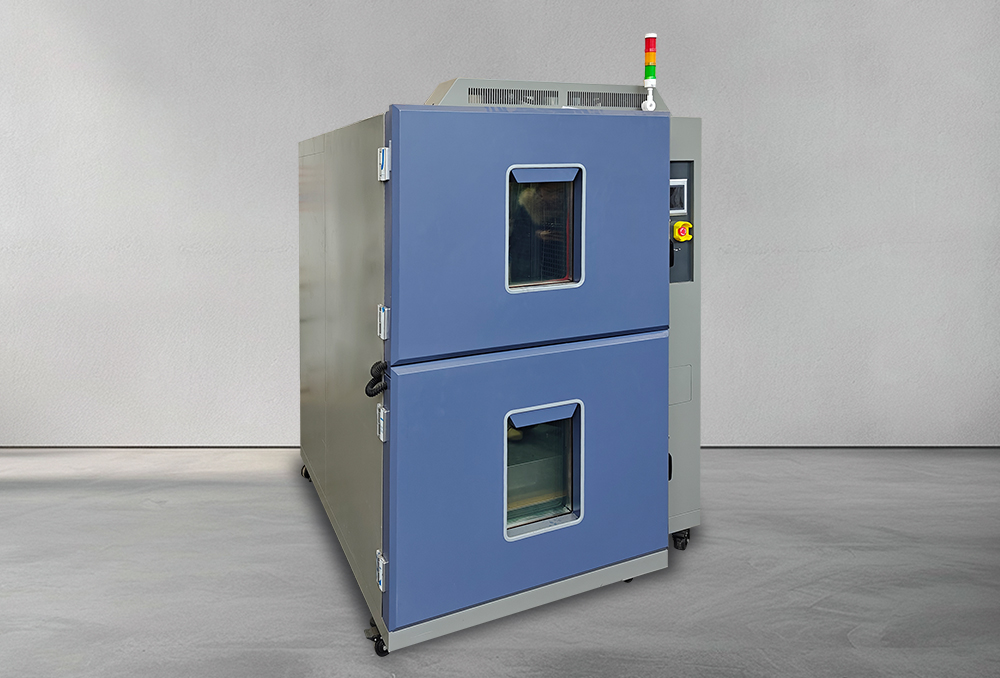

Two Box Type Cold And Hot Shock Test Chamber (air-cooled)

Two Box Type Cold And Hot Shock Test Chamber (air-cooled)

Two box thermal shock test chamber is widely used in electronic and electrical components, plastics and other industries, automation parts, communication components, auto parts, metals, chemical materials, plastics and other industries, national defense industry, aerospace, miltary industry, BGA, PCB base trigger, electronic chip IC, semiconductor ceramics and polymer materials for physical changes for testing , used to test the degree to which the material structure or composite material can withstand in a continuous environment of extremely high temperature and extremely low temperature in an instant, so as to test the chemical changes or physical changes caused by thermal expansion and contraction in the shortest possible time.

Quantity:
Availability:





Inquire Add to Basket

Brand:
LUGONG

Product Description

Specification

Product model	LG-TSM-605FL	LG-TSD-608FL	LG-TSM-610FL	LG-TSM-615FL
Content volume	50L	80L	100L	150L
Inner box size	W400H350D350mm	W500H400D400mm	W500H500D400mm	W600H500D500mm
Dimensions (about.)	W1500H1900D2000mm	W1500D1900H2000mm	W1500D2000H2000mm	W1600D2000H2100mm
Test chambertemperature range	-60°C~+150 °C (air-cooled).
Low temperature impactrange	-10°C~-60°Ccan be adjusted arbitrarily).
High temperature impactrange	60°C~150°C(arbitrarily adjustable).
High temperature chamber
Preheating temperature range	RT~+170℃
Heating time	RT→+170°C ≤30minNote: The heating time is the performance of the high-temperature chamber when it is operated alone
Cryogenic chamber
Pre-cooling temperature range	RT~-75℃
Cooling time	RT→-75°C≤about50minutesNote: The cooling time is the performance of the cryogenic chamber when operating alone
Laboratory (specimen area).
Test method	Place the product in the gondola test area, two boxes of mobile cold and hot shock, and safely air pressure drives the test object to go up and down to impact it.
Temperature fluctuations	±0.5℃
Temperature deviation	±2.0℃
Temperature recovery time	≤5min;The conversion temperature only takes≤ 10s(basket movementtime:within 5seconds).
Impact exposure time	≥30min
Test environmental conditions	The ambient temperature around the machine is maintained between +25~+30°C, and the relative humidity: ≤85%; Air pressure: 86kPa~106kPa is normal large air pressure.
Controller model	"Lugong Controller"can be programmedto sequence the temperature controllerfull touch screen controller, touch screen input, according to customer requirements can arbitrarily set different high and low temperature impact temperature points to meet the different needs of testing
Display	LCD LCD screen
Mode of operation	Procedure method
Setup Method	Full Chinese LCD display (switchable between Chinese and English) LCD touch panel (withstand 100.000 line drawing test)
Program capacity	Up to 120 groups, each program is divided into three zones, three zones and three segments. Each command can be up to 999 times; The program period time is set to 0~ 9999Hour59Min
Display resolution	Temperature: 001℃;Time:1s
Input	thermocouple
Storage device	USB andR232 communication interfaces
Control Methods	Anti-integral saturation PID, fuzzy algorithmandBTC balanced temperature regulation control method
Curve recording function	The graphical curve can be displayed in real time when the program is executed
Affiliates	It has the function of power-off program memory, starting and continuing to execute the program after power is restored, with date, time adjustment, and scheduled start. Shutdown function and screen lock (LOCK) function.
Weight	Approx. 700kg
Voltage range:	AC(380±10)V
