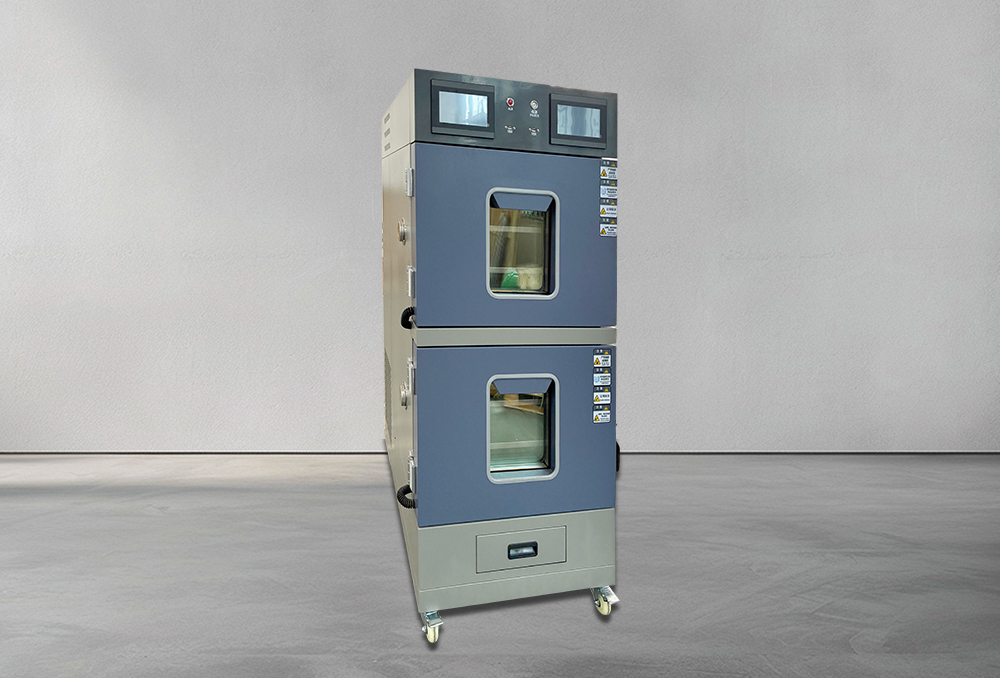

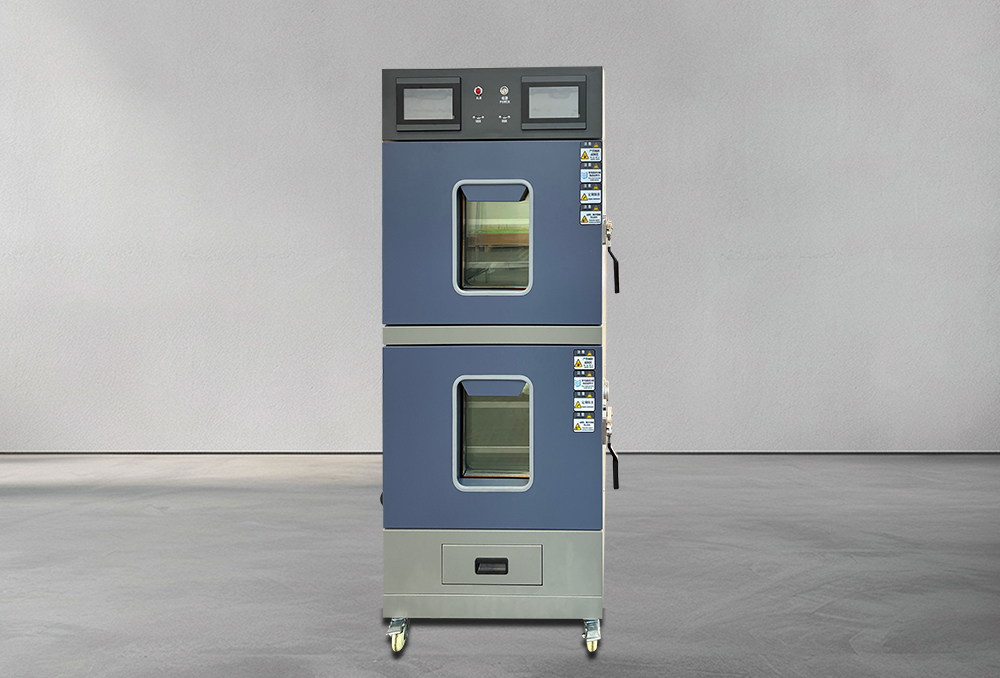

LG-100ZB
LUGONG
Applications
Rubber Temperature Humidity Test Chamber main to simulate test environment with different temperature and humidity for the plastic and rubber materials. And temperature & Humidity Test chamber do the Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
The Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation.Uncover test unit weakness in a short-term test with accelerated time effect.
Standard Features
Item | Specification |
Internal dimension(W*D*H) | 500mm×500mm×400mm（W×H×D）（100L） |
External dimension(W*D*H) | 750mm×1620mm×1135mm（W×H×D） |
Temperature range | -40~+150℃ |
Temperature Accuracy | ±1℃ |
Humidity range | 20~98%R.H. (Refer Image below) |
Humidity accuracy | ±3%R.H |
Cooling speed | 1℃/min in average (without loading) |
Heating speed | 3℃/min in average (without loading) |
Internal chamber material | SUS#304 stainless steel, mirror finished |
External chamber material | Stainless steel with paint spray |
Cooling method | Air cooling |
Controller | LCD touch screen, programmable control temperature and humidity can set different parameter for cyclic test |
Insulation material | 50mm high density rigid Polyurethane foam |
Heater | Explosion-proof type SUS#304 stainless steel fins radiator pipe heater |
Compressor | France Tecumseh compressor |
Lighting | Heat resistance |
Temperature sensor | PT-100 dry and wet bulb sensor |
Observation window | Tempered glass |
Testing hole | Diameter 50mm, for cable routing |
Sample tray | SUS#304 stainless steel, 2pcs |
Safety protection device | Protection for leakage/Over-temperature/Compressor overvoltage and overload/Heater short circuit/Water shortage |
Chamber Design Features
1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Accurate wet/dry-bulb humidity measurement system for easy maintain
Programmable Controller
1. PIC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
3. RS-232 interface to connect computer for output
