Applications:

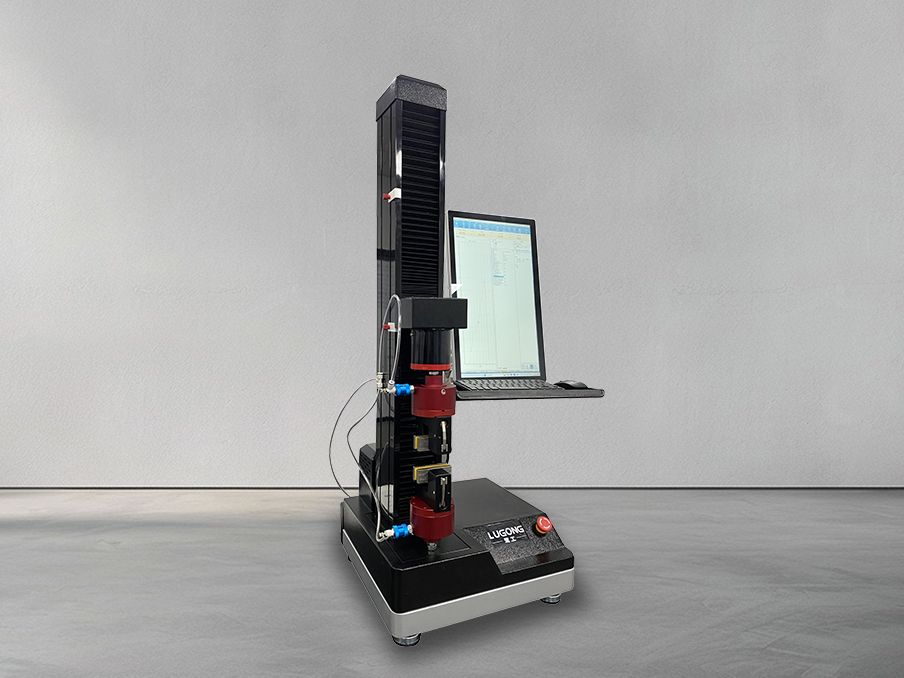

Universal Tensile Test Machine，it is suitable for testing and analyzing the mechanical properties for plastic film, composite film, flexible packaging material, adhesive tape, rubber, paper and other products in tensile, peeling, tearing, heat sealing, adhesion, compression, bending. And it is also suitable for testing and analyzing the mechanical properties for corrugated cartons, honeycomb cartons, flexible packaging bags, plastic drums (edible oil, mineral water), paper drums, paper cans, IBC drums and hollow containers.
Feature:
A tester integrates multiple independent testing functions such as tensile, deformation, peeling, tearing, and compression, and provides a variety of test items for users to choose
1. Provide data analysis of constant tensile stress, elastic modulus, stress and strain;
2. Double-pillar ball nut and screw drive to ensure high precision and smooth operation;
3. The equipment adopts miniaturization and structural integration design, which can meet the test requirements of various occasions;
4. 1~500mm/min stepless speed change, which provides convenience for users to test under different test conditions;
5. Intelligent configuration such as multi-level limit protection, overload protection, automatic high-speed return, and fault notification to ensure the user's operation safety;
6. Embedded system and membrane key switch, which are convenient for users to conduct test operations quickly;
7. The embedded control system effectively guarantees the security of the system and improves the reliability of data management and test operations;
8. The system is equipped with 4 USB ports and 2 network ports to facilitate data transmission and external access of the system;
9. Professional software provides statistical analysis of group test curve overlay analysis, maximum, minimum, average, and standard deviation.
Specifications:
Index | Parameters |
Load capacity | 5-2000kg |
Load cell brand | Germany brand TECSIS load cell |
Motor | 400w Panasonic serve motor |
Driver | 400wPanasonic serve driver |
Screw | High precision imported ball screw |
Control Mode | Computerized ,windows mode operation |
Test Speed | 0.1-500mm/min (Adjustable) |
Vertical space | 1200mm（including clamp） |
Load Resolution | 1/250,000 |
Load accuracy | ≤0.5% |
Unit switching | gf/kgf/N//kN/LBf/T |
Dimension | （L*W*H）880*505*1470mm |
Weight | 90KG Approx |
Power | 1∮ AC 220V |
 |  |  |  |

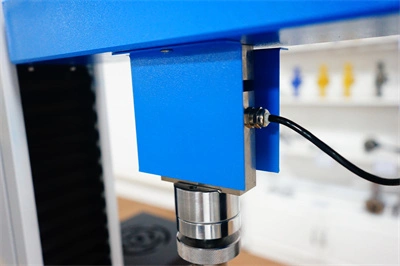

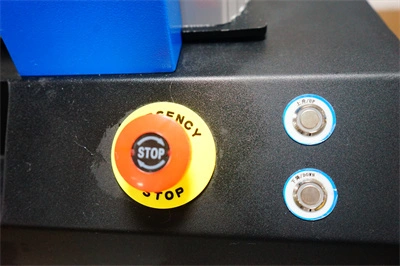

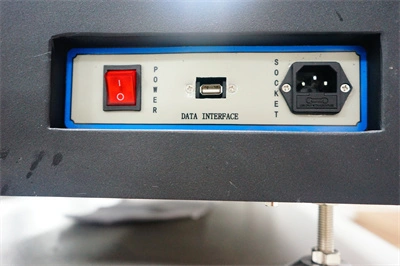

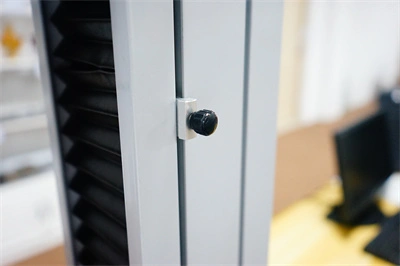

| Limit Protection Limit lever is mainly used for misoperation or machine shutdown to ensure high precision and smooth operation of the instrument | Sensor It is more accurate to install protective devices without interference from the outside world | Computer Connector USB interface or network port is embedded in the system to facilitate data transmission and external access | Operation Panel With emergency button, up and down operation button to make convenient operation |
