LUGONG
Instrument Introduction:

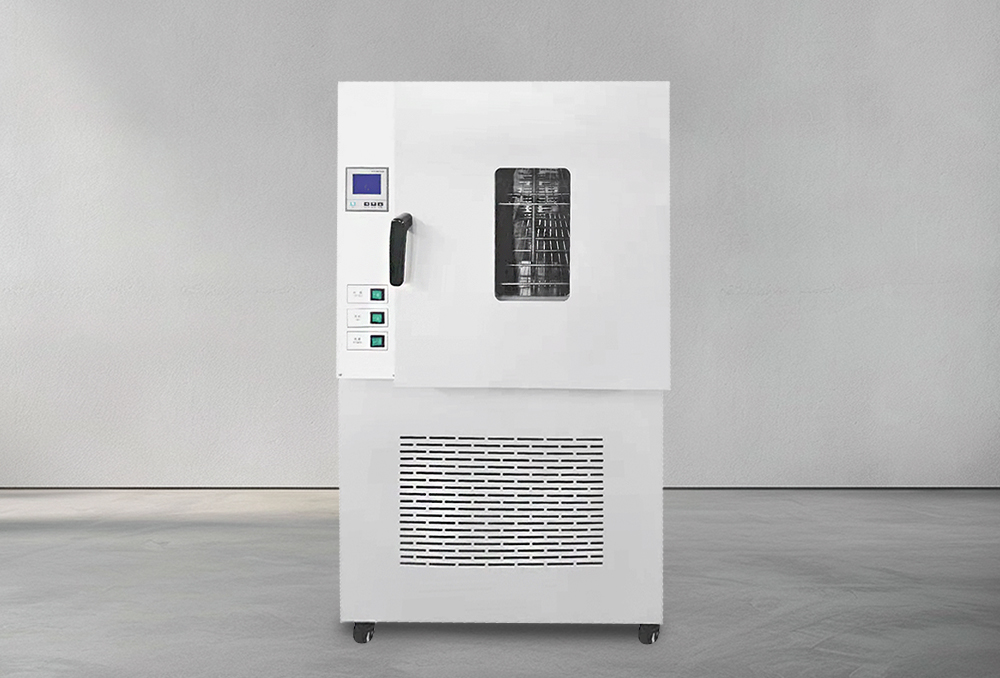

The heat aging test chamber is suitable for scientific research units and factories to conduct thermal aging tests of plastic materials (rubber, plastic), electrical insulation and other materials. Temperature control.The system adopts digital display, digital control PID automatic adjustment instrument, automatic constant temperature, the structure of the box and the instruments and materials used are in the air flow and temperature in the box.After detailed research, the design has sensitive temperature control, uniform temperature and stable performance, and its performance conforms to GB/T 3512-2014 vulcanized rubber or thermoplastic rubber.The requirements of the national standard for accelerated aging and heat resistance test of glue hot air on "test device". This box is equipped with three gears on the left air duct plate in the hot air introduction box.Adjust the plate, which is used to adjust the uniformity of the temperature distribution in the chamber.
Overview of the structure：

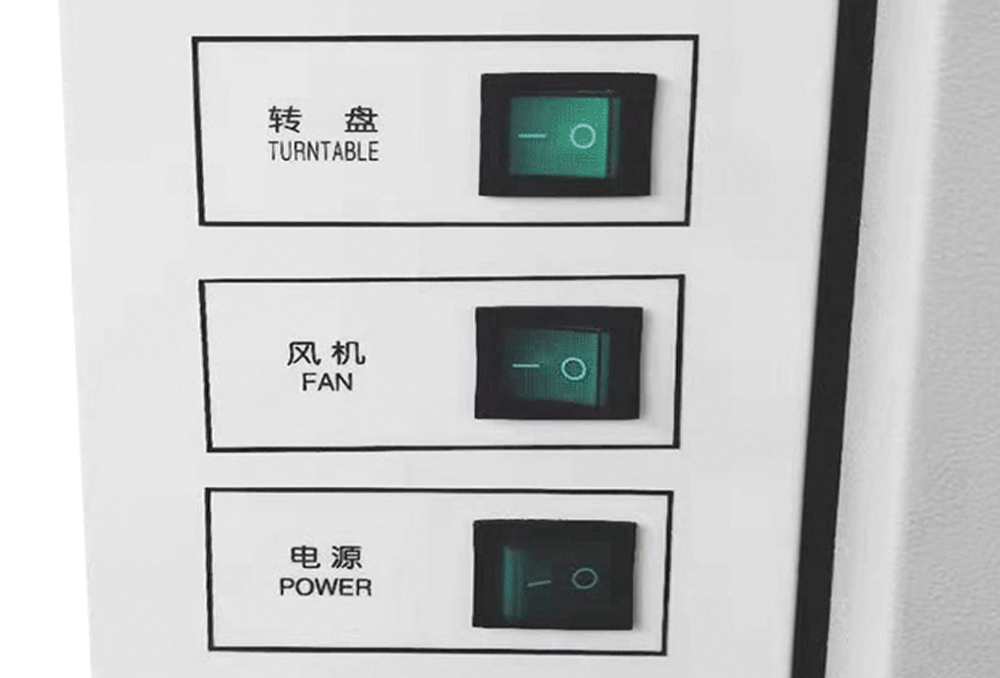

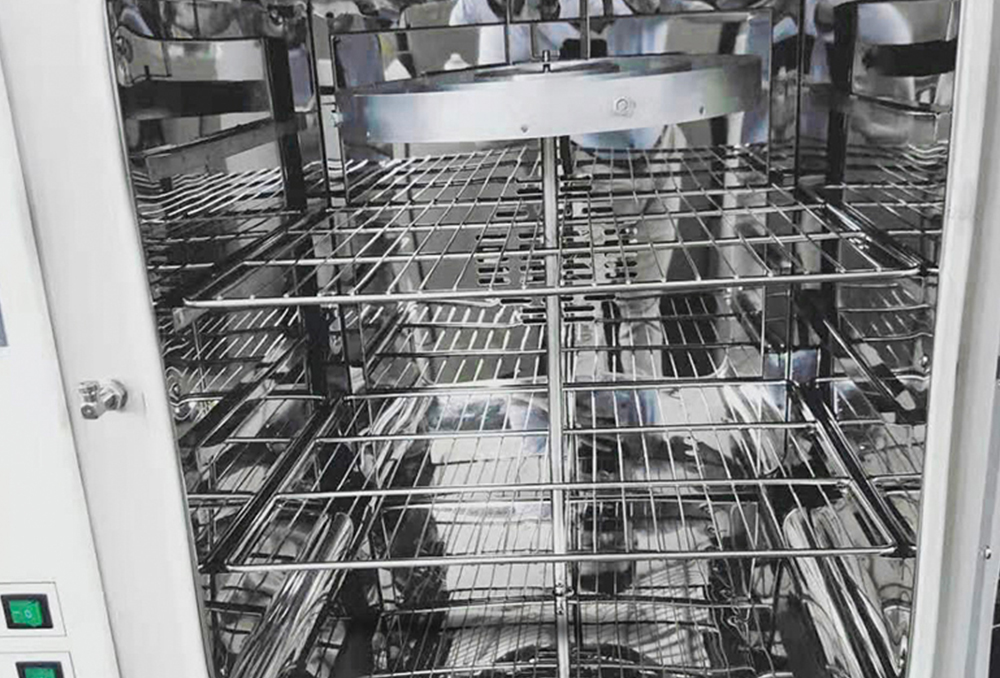

The aging test chamber is a series of products after the modification of the original series of products, which is energy-saving, beautiful and practical after modification. Non-specifications can be special according to user requirements.Processing, the shell of the aging test chamber of all specifications is welded with high-quality steel plate, the surface is baked, and the inner chamber steel plate is sprayed with temperature-resistant silver powder paint or not.Made of rusty steel with two to five shelves. The insulation layer is insulated with ultra-fine glass wool. The door is equipped with a double-glazed observation window, and the studio is installed at the junction of the door.There is a heat-resistant asbestos rope to ensure that the seal between the studio and the door is sealed. The power switch, temperature controller and other operating parts of the aging test chamber are concentrated on the front left of the box.side of the control place, according to the indicator operation.
Technical Parameters:
| Equipment model | LG-401AB |
| Maximum operating temperature | Room temperature 300 ℃ |
| Control volatility | ±2°C |
| Uniformity of temperature distribution | ±2% |
| Air change | 3-10 times/hour |
| Wind speed | <0.75±0.25m/s |
| Turntable speed | 7.5r/min |
| Studio size (L*W*H) | 450mm*450mm*450mm |
| Carton size (L*W*H) | 800mm* 780mm*1280mm |
| Blower power | 40W |
| Voltage: | 220V |
| Net weight: | 230kg |
Instrument Introduction:
The heat aging test chamber is suitable for scientific research units and factories to conduct thermal aging tests of plastic materials (rubber, plastic), electrical insulation and other materials. Temperature control.The system adopts digital display, digital control PID automatic adjustment instrument, automatic constant temperature, the structure of the box and the instruments and materials used are in the air flow and temperature in the box.After detailed research, the design has sensitive temperature control, uniform temperature and stable performance, and its performance conforms to GB/T 3512-2014 vulcanized rubber or thermoplastic rubber.The requirements of the national standard for accelerated aging and heat resistance test of glue hot air on "test device". This box is equipped with three gears on the left air duct plate in the hot air introduction box.Adjust the plate, which is used to adjust the uniformity of the temperature distribution in the chamber.
Overview of the structure：
The aging test chamber is a series of products after the modification of the original series of products, which is energy-saving, beautiful and practical after modification. Non-specifications can be special according to user requirements.Processing, the shell of the aging test chamber of all specifications is welded with high-quality steel plate, the surface is baked, and the inner chamber steel plate is sprayed with temperature-resistant silver powder paint or not.Made of rusty steel with two to five shelves. The insulation layer is insulated with ultra-fine glass wool. The door is equipped with a double-glazed observation window, and the studio is installed at the junction of the door.There is a heat-resistant asbestos rope to ensure that the seal between the studio and the door is sealed. The power switch, temperature controller and other operating parts of the aging test chamber are concentrated on the front left of the box.side of the control place, according to the indicator operation.
Technical Parameters:
| Equipment model | LG-401AB |
| Maximum operating temperature | Room temperature 300 ℃ |
| Control volatility | ±2°C |
| Uniformity of temperature distribution | ±2% |
| Air change | 3-10 times/hour |
| Wind speed | <0.75±0.25m/s |
| Turntable speed | 7.5r/min |
| Studio size (L*W*H) | 450mm*450mm*450mm |
| Carton size (L*W*H) | 800mm* 780mm*1280mm |
| Blower power | 40W |
| Voltage: | 220V |
| Net weight: | 230kg |
