LUGONG
Energy saving: When the temperature needs to be stabilized again, the advanced PID control can effectively control the output value of the constant phase and the recovery phase.
Network communication: The source code of the LUGONG control system can be opened to customers, which can match the operating software or connect to the lab WEB system.
Multi-language controller display: Multiple languages can be selected, English, Chinese, Russian, Korean, German, French, Polish, Spanish, Turkish, Romanian.
Remote communication: Standard network port and USB interface are used for computer remote control and download data (CSV and excel format) and view test run music. Optional wireless wifi control and mobile phone SMS alarm.
Energy-Efficient Performance: Advanced PID control intelligently manages power output during steady-state and recovery phases, significantly reducing energy consumption while maintaining precise temperature stability.
Smart Connectivity & Integration: LUGONG’s control system supports open-source code access for seamless integration with third-party software or lab management systems, offering enhanced flexibility for network communication and automation.
Model | LGD-100 | LGD-225 | LGD-408 | LGD-800 | LGD-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 600*800*850 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 400L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | -40℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Cooling Rate | 10 ℃ / min | ||||
Heating Rate | 10 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection, PC Link | ||||
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | ||||
Air Circulation | Centrifugal wind fan | ||||
Safety Device | Over-temperature Protection; Over-current Protection; Refrigerant High-Pressure Protection; Earth leakage Protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||

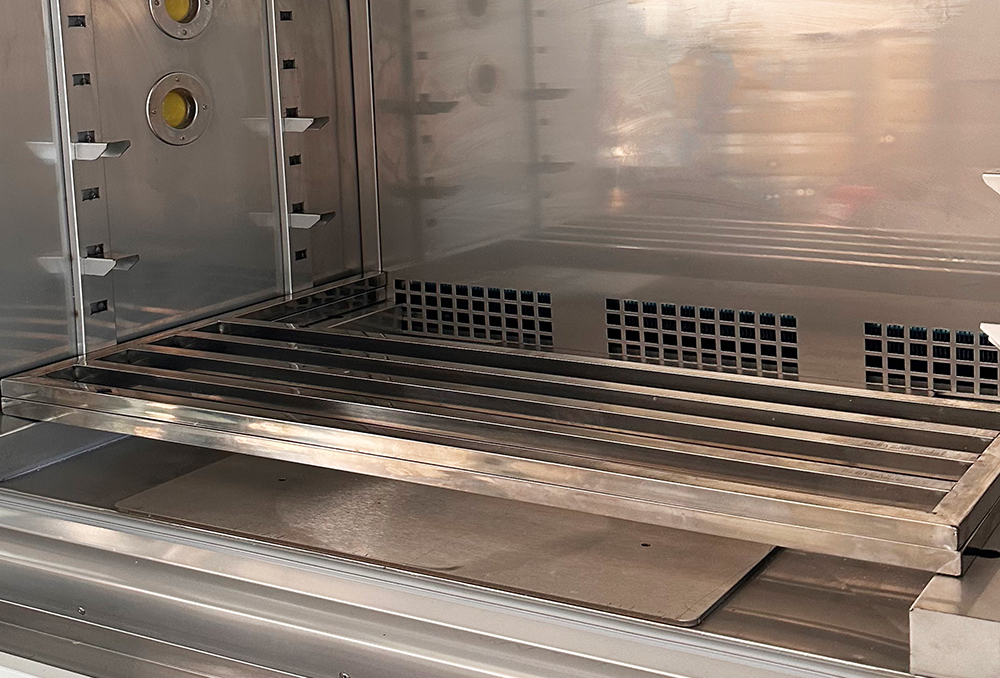

Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | ||||
Power Supply | 380V 50Hz | ||||
Maximum Noise | 65 dBA | ||||
FQAs
Q1: Can LUGONG customize the test chamber to fit my specific sample size and testing requirements?
A: Yes, LUGONG offers fully customizable sample holders and test procedures to accommodate different sample sizes and standards, ensuring your testing needs are precisely met. Contact us to discuss your unique requirements.
Q2: What warranty and after-sales services does LUGONG provide?
A: LUGONG provides a 3-year warranty and lifelong maintenance. If equipment problems cannot be solved, we offer free replacement of the test chamber to ensure your operations continue smoothly.
Q3: How does LUGONG provide shipping and technical support?
A: LUGONG offers fast and secure worldwide shipping via multiple transport methods, with spare parts typically delivered within 7–15 days. Our professional English-speaking technical team is available 24/7 for ongoing support and troubleshooting. Contact us anytime for reliable assistance.
