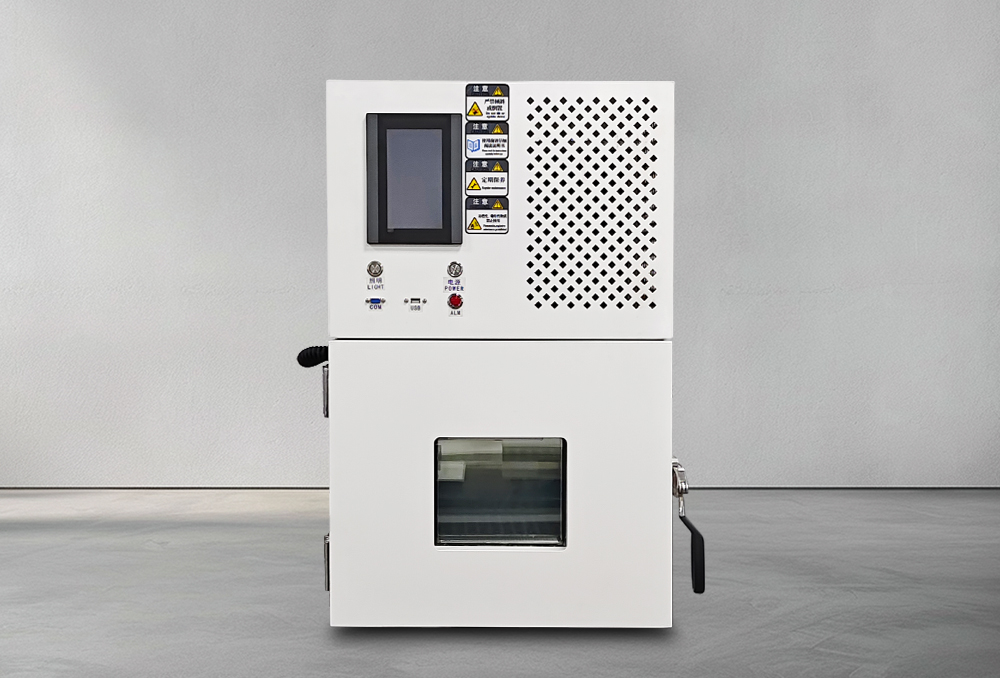

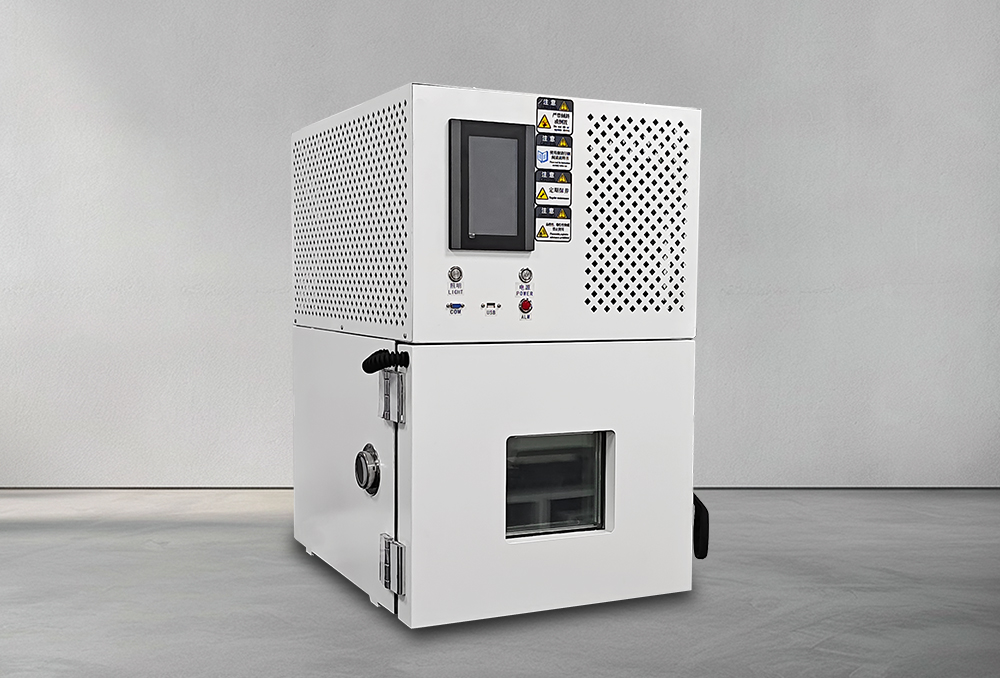

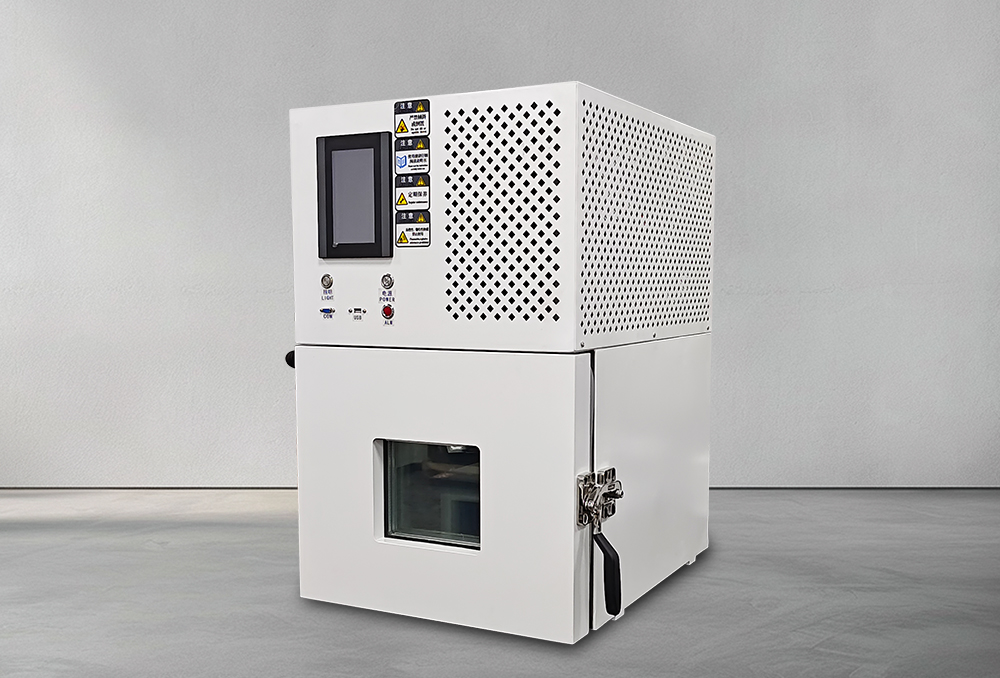

Desktop High And Low Temperature Test Chamber

Desktop High And Low Temperature Test Chamber

This constant temperature and humidity environment test chamber can simulate various temperature and humidity environments, suitable for testing electronic, electrical, food, automotive, rubber, plastic rubber, metal and other products, meeting the reliability and stability performance parameters of various harsh environments such as GB/T2423 and GJB150A1/4, and will provide you with a basis for predicting and improving product quality and reliability.
Technical features:

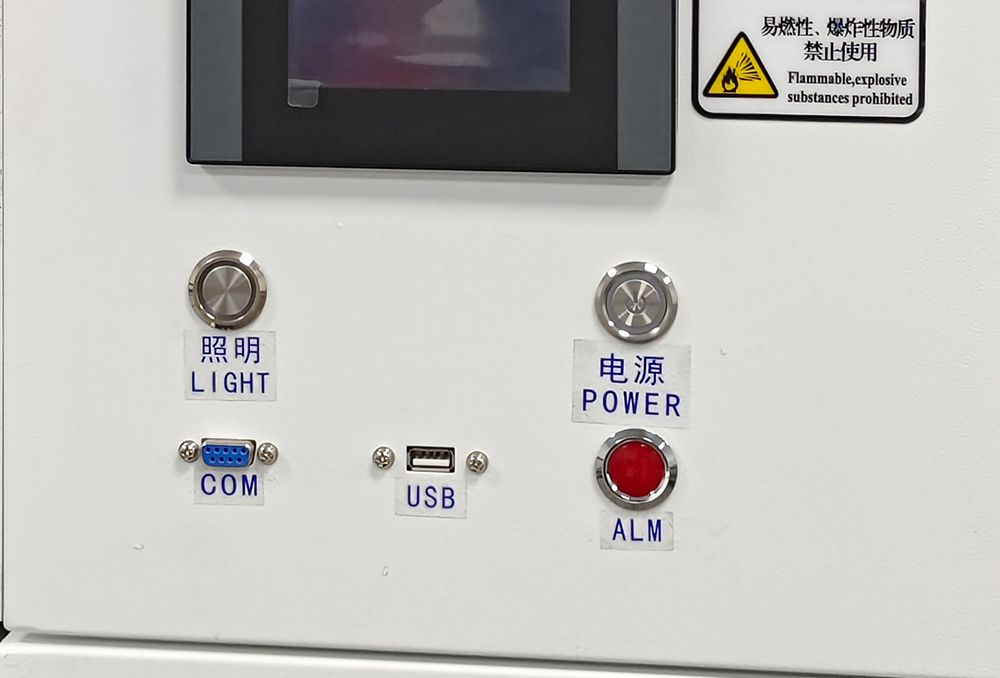

1. Adopting a 7-inch TEMI880 color touch screen display, the screen is intuitive and easy to operate, with permanent historical data saving function
2. Pre order power on/off function, end planning settings, automatically save data curves during power outages, etc
3. At the end of the experiment, the test sample will automatically return to room temperature to avoid frost and condensation protection mechanism
4. Adopting servo refrigerant flow control technology effectively achieves energy savings of over 30%
5. The experiment is conducted in a loop without affecting the impact time
6. Using pure aluminum finned evaporator, effectively reducing energy storage time and saving energy

Quantity:
Availability:





Inquire Add to Basket

Brand:
LUGONG

Product Description

Specification

Model	STZ-30LA	STZ-50LA	STZ-70LA	STZ-80LA
Volume of the inner box (L)	30	50	70	80
Inner box size (WHD)MM	300500200	350400350	400500350	400500500
Temperature range	B:0℃→+150℃;R:-20℃→+150℃;L:-40℃→+150℃;U:-60℃→+150℃;S:-70℃→+150℃
Humidity range	Customized according to customer needs
Temperature fluctuation	≤±0.5℃;
Temperature uniformity	≤±2.0℃
Temperature deviation	≤±2.0℃
Warming time	1 to 3℃/min
Cooling time	1℃/min
Cooling method	Air-cooled or water-cooled (optional)
Load	Simulated heating load is customized according to actual needs
Inner box material	304 stainless steel
Shell material	Stainless steel plate baked paint or stainless steel
Thermal insulation material	High-density polyurethane foam
Freezing system	Imported first-line well-known brand compressors
Protective device	No fuseSwitch, compressor overpressure, overheating protection, overcurrent protection, overtemperature protection, overload protection, dry burning protection, water shortage protection, etc.
Controller	Touch screen controller, optional Chinese/English/Japanese/Korean, customized/program operation

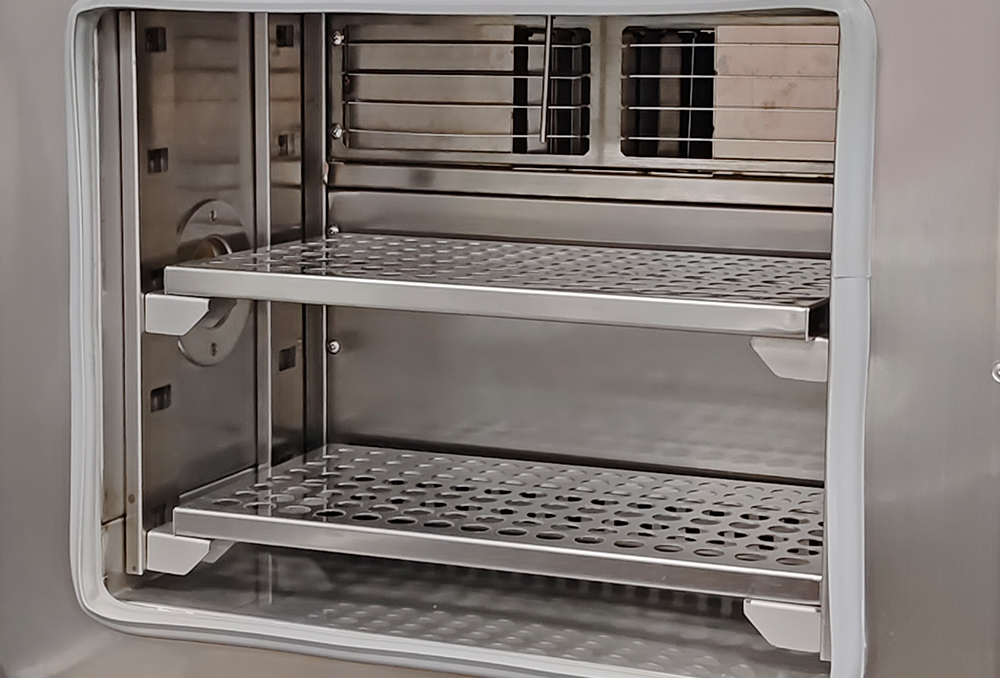

Standard accessories	050mm test hole, 2 pieces of 304 grille steel plate shelves
Working environment	+5℃~+35℃; atmospheric pressure 80kPa; flat and vibration-free bottom; relative humidity greater than 85% R.H

Power supply

220V AC3C 50Hz

Meet the standards:

The performance indicators comply with the requirements of GB5170, 2, 3, 5, 6-95 "Basic Parameter Calibration Methods for Environmental Testing - High Temperature, Constant Damp Heat, and Alternating Damp Heat Test Equipment". Environmental Test Regulations Test B: High Temperature Test Method GB2423.2-89 (IEC68-2-2) Environmental Test Regulations Test Ca: Constant Damp Heat Test Method GB/T2423.3-93 (IEC68-2-3) Environmental Test Regulations Test Da: Alternating Damp Heat Test Method GB/T423.4-93 (IEC68-2-30)

Heating system:

Continuous PID regulation, using AC contactors as heating actuators, safe and reliable, with a separate over temperature protection system.
Air duct system:

To ensure a high uniformity index, the test chamber is equipped with an internal circulating air supply system; Inside the air duct interlayer at one end of the studio, there are devices such as heaters, refrigeration evaporators, and fan blades distributed; Use a fan to circulate the air in the box. When the fan rotates at high speed, the air in the working chamber is sucked into the air duct from the lower part. After heating and cooling, it is blown out from the upper part of the air duct. The air that exchanges heat with the test sample in the working chamber is then sucked into the air duct and repeatedly circulated to meet the temperature setting requirements.
