LG-20KGD
LUGONG
Introduction:

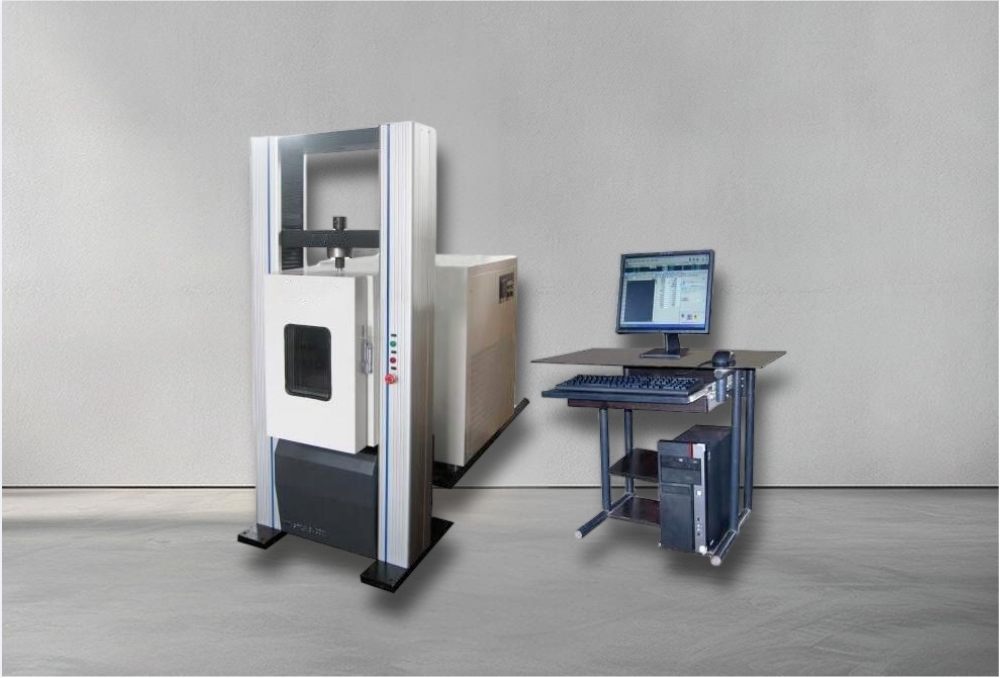

The high low temperature universal test machine is controlled by computer and is widely used in rubber, plastic, wire and cable, textile, waterproof materials, non-woven fabrics and other non-metallic materials and metal wire, metal foil, metal sheet and metallic rods of the mechanical properties of the test, with special fixture is also applicable to a variety of finished products stretching, compression, peeling, shearing, tearing, bending (folding) test. Can print a number of data, according to different data to make graphics output comparison, high control accuracy, easy to operate, modular design, a variety of accessory accessories range, with flexible.
Standard Features:
Tensile Tester | |
Maximum test force | 20KN |
Test force measurement range | 0.2% -100% FS with no grading throughout the entire process |
Accuracy of experimental force | Within ± 0.5% |
Experimental power resolution | 1/± 300000 of the maximum test force (with constant resolution throughout the entire process) |
Deformation measurement range | 0.2%-100%FS |
Force reading | kgf, Ibf, N, KN, T etc |
Relative error of deformation indication | Within ± 0.5% of the displayed value |
Deformation resolution | 1/± 300000 of maximum deformation |
Dimensions of high and low temperature chambers | 300mm * 300mm * 500mm [Special requirements to be determined separately] |
temperature range | -40~150 ° C [Special requirements to be determined] |
temperature fluctuation | ±0.5°C |
Displacement resolution | 0.05μm |
Relative error of displacement indication | Within ± 0.5% of the displayed value |
Range of force control rate adjustment | 0.01-5%FS/S |
Relative error of force control rate | Within ± 0.5% of the set value |
Range of deformation rate adjustment | 0.02—5%FS/S |
Relative error of deformation control rate | Within ± 0.5% of the set value |
Range of speed adjustment for crossbeam | 0.01—200mm/min |
Relative error rate of crossbeam velocity | When<0.01mm/min, within ± 1.0% of the set value; When the speed is ≥ 0.01mm/min, within ± 0.2% of the set value |
Constant force, constant deformation, constant displacement control range | 0.5%--100%FS |
Constant force, constant deformation, and constant displacement control accuracy | When the set value is less than 10% FS, it is within ± 1% of the set value; When the set value is ≥ 10% FS, it is within ± 0.1% of the set value |
Room temperature effective stretching space | 800mm [Special requirements to be determined separately] |
High and low temperature effective stretching space | 400mm [Special requirements to be determined separately] |
Effective experimental width | 400mm |
Host size (length x width x height) | 800×600×2000（mm） |
Observation window | Tempered glass |
Sample tray | SUS#304 stainless steel, 2pcs |
