LUGONG

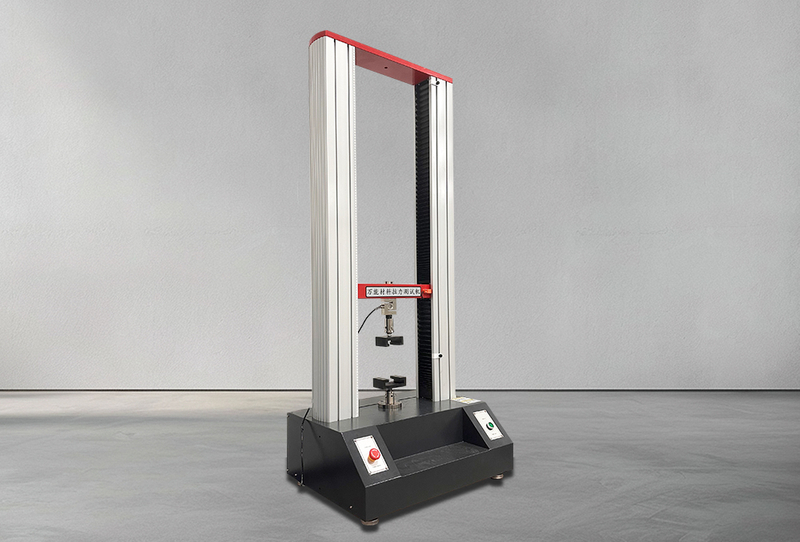

Rubber and Plastic Tensile Testing Machine
1. Briefly Introduce:
These series of Tensile Testing Equipment With Electric is used to test tension, compression, shearing force, adhesion, peeling force, tear strength...etc. of specimen, semi-product and finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile...etc., which are the basic facilities for input quality contorl (I.Q.C), Quality Control (Q.C.), Physical Inspection, Mechanics Research and Material Development.
2. Design criteria
GB/T 16491, GB/T 1040, GB/T 8808, GB/T 13022, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 16825, GB/T 17200, GB/T 3923.1, GB/T 528, GB/T 2611, GB/T 6344, GB/T 20310, GB/T 3690, GB/T 4944, GB/T 3686, GB/T 529, GB/T 6344, GB/T 10654, HG/T 2580, JC/T 777, QB/T 2171, HG/T 2538, CNS 11888, JIS K6854, PSTC-7, ISO 37, AS 1180.2, BS EN 1979, BS EN ISO 1421, BS EN ISO 1798, BS EN ISO 9163, DIN EN ISO 1798, GOST 18299, DIN 53357, ISO 2285, ISO 34-1, ISO 34-2, BS 903, BS 5131, DIN EN 12803, DIN EN 12995, DIN53507-A, DIN53339, ASTM D3574, ASTM D6644, ASTM D5035, ASTM D2061, ASTM D1445, ASTM D2290, ASTM D412, ASTM D3759/D3759M
3. Specifications
Item | Description |
Frame capacity | 2000kg |

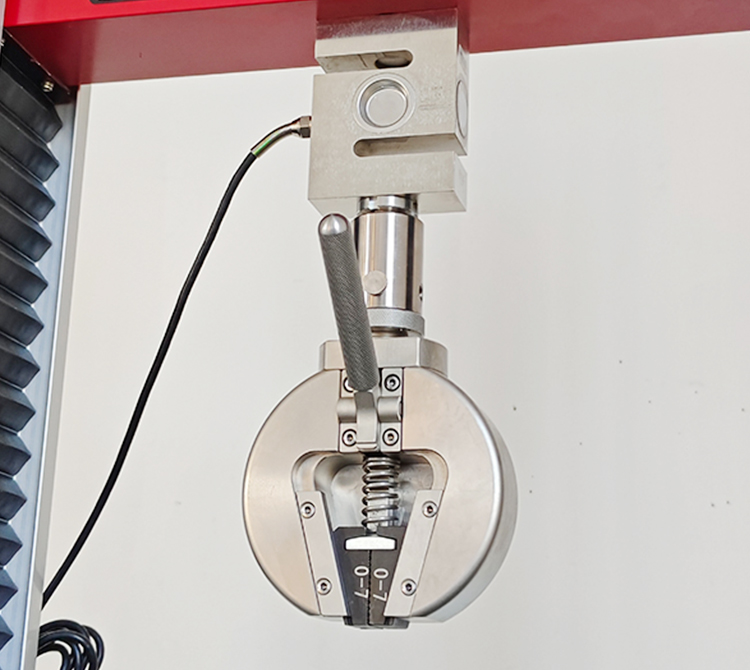

Load cell brand | Germany brand load cell for high accuracy, 2000kg (500,1000kg are optional) |
Load accuracy | 0.5% F.S |
Control system | PC with windows 7 system |
Motor | Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
Force reading | kgf, Ibf, N, KN, T etc |
Vertical test space | 1200mm including fixture |
Horizontal test space | ≤400mm |
Test speed | 0.1~500mm/min (adjustable) |
Software | TM 2101 |
Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
Safety features | E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
4. Features
1). Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
2). Using a single-screen operation; do not need to switch the screen;
3). With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
4). The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
5). Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6). With a variety of measurement units, Measure In Imperial & Metric are switchable;
7). With self-return & auto-correction function;
8). With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9). With the user-defined Test methods; with experimental data analysis function;
10). High quality, accurate and reliable models with reasonable price.
5. Standard
ASTMD903, GB/T16491, GB/T1040, GB/T8808, GB13022, GB/T 2790/2791/2792, CNS-11888, JIS K6854, PSTC-7.
Rubber and Plastic Tensile Testing Machine
1. Briefly Introduce:
These series of Tensile Testing Equipment With Electric is used to test tension, compression, shearing force, adhesion, peeling force, tear strength...etc. of specimen, semi-product and finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile...etc., which are the basic facilities for input quality contorl (I.Q.C), Quality Control (Q.C.), Physical Inspection, Mechanics Research and Material Development.
2. Design criteria
GB/T 16491, GB/T 1040, GB/T 8808, GB/T 13022, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 16825, GB/T 17200, GB/T 3923.1, GB/T 528, GB/T 2611, GB/T 6344, GB/T 20310, GB/T 3690, GB/T 4944, GB/T 3686, GB/T 529, GB/T 6344, GB/T 10654, HG/T 2580, JC/T 777, QB/T 2171, HG/T 2538, CNS 11888, JIS K6854, PSTC-7, ISO 37, AS 1180.2, BS EN 1979, BS EN ISO 1421, BS EN ISO 1798, BS EN ISO 9163, DIN EN ISO 1798, GOST 18299, DIN 53357, ISO 2285, ISO 34-1, ISO 34-2, BS 903, BS 5131, DIN EN 12803, DIN EN 12995, DIN53507-A, DIN53339, ASTM D3574, ASTM D6644, ASTM D5035, ASTM D2061, ASTM D1445, ASTM D2290, ASTM D412, ASTM D3759/D3759M
3. Specifications
Item | Description |
Frame capacity | 2000kg |
Load cell brand | Germany brand load cell for high accuracy, 2000kg (500,1000kg are optional) |
Load accuracy | 0.5% F.S |
Control system | PC with windows 7 system |
Motor | Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
Force reading | kgf, Ibf, N, KN, T etc |
Vertical test space | 1200mm including fixture |
Horizontal test space | ≤400mm |
Test speed | 0.1~500mm/min (adjustable) |
Software | TM 2101 |
Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
Safety features | E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
4. Features
1). Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
2). Using a single-screen operation; do not need to switch the screen;
3). With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
4). The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
5). Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6). With a variety of measurement units, Measure In Imperial & Metric are switchable;
7). With self-return & auto-correction function;
8). With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9). With the user-defined Test methods; with experimental data analysis function;
10). High quality, accurate and reliable models with reasonable price.
5. Standard
ASTMD903, GB/T16491, GB/T1040, GB/T8808, GB13022, GB/T 2790/2791/2792, CNS-11888, JIS K6854, PSTC-7.
