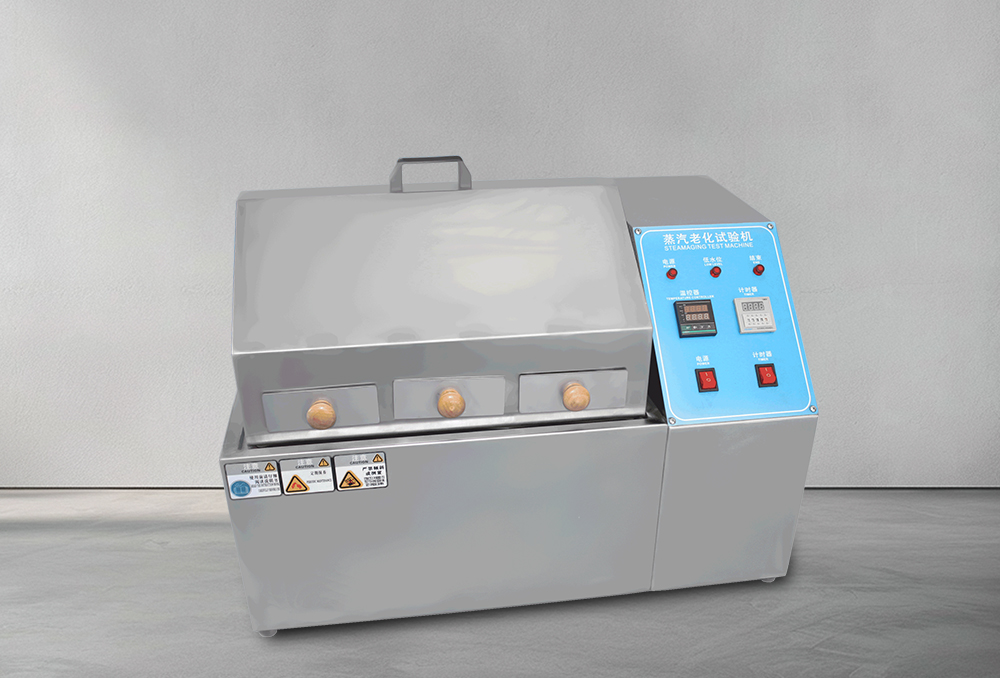

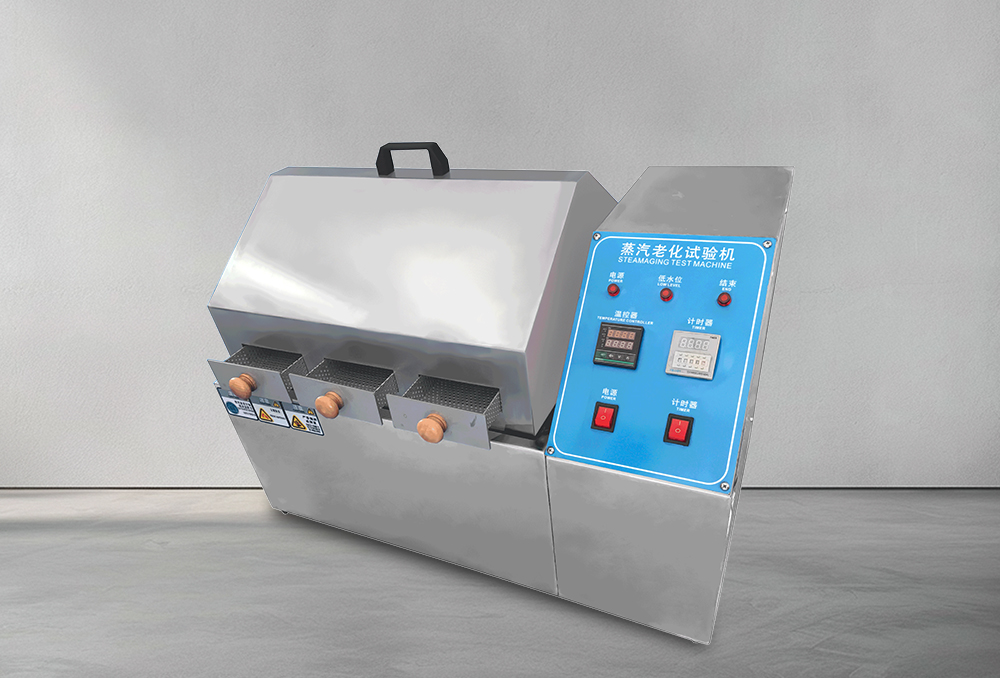

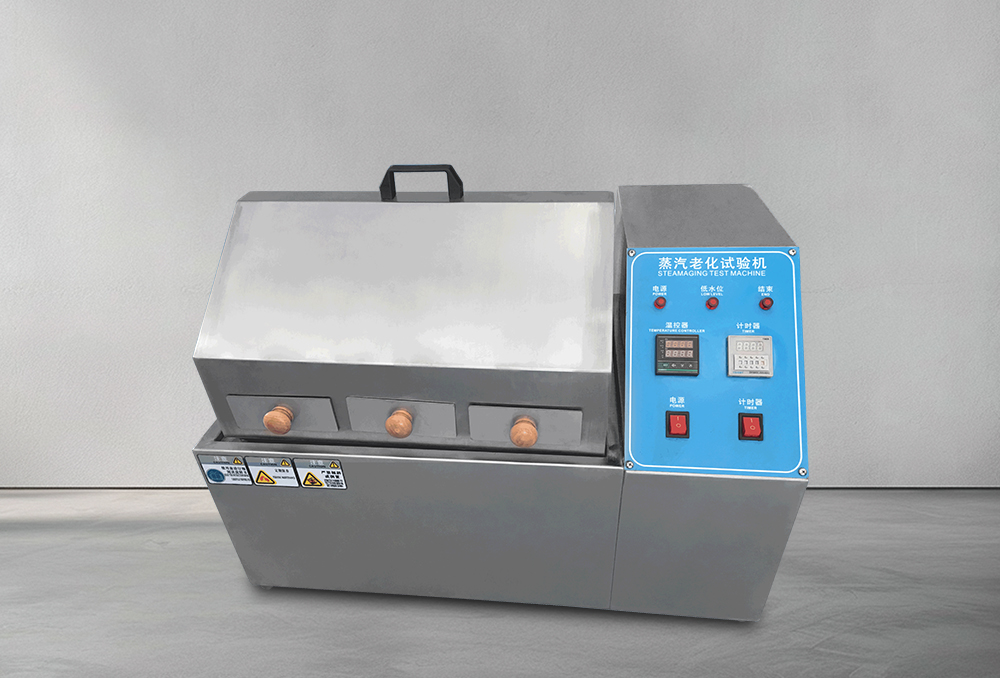

Steam Aging Test Chamber

It is suitable for electronic connectors, semiconductor ICs, transistors, diodes, liquid crystal LCDs, chip resistors, capacitors, and components of electronic components before the aging accelerated life time test before the tinning test of metal pins; Oxidation test of semiconductors, passive components, and parts pins. Microcomputer temperature controller, LED digital display, PID+SSR control, platinum resistive temperature sensor (PT-100), resolution 0.1°C, fully automatic safety protection device.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Instrument overview

It is suitable for electronic connectors, semiconductor ICs, transistors, diodes, liquid crystal LCDs, chip resistors, capacitors, and components of electronic components before the aging accelerated life time test before the tinning test of metal pins; Oxidation test of semiconductors, passive components, and parts pins. Microcomputer temperature controller, LED digital display, PID+SSR control, platinum resistive temperature sensor (PT-100), resolution 0.1°C, fully automatic safety protection device.

Instrument features

1. Inner and outer box material: SUS304 is made of unshow steel. Beautiful appearance, not easy to age;

2. Water level control: a stainless water tank is included, which can be manually added or connected to the tap water pipe, and the instrument can be manually or automatically replenished when the water level is low, and the experiment will not be interrupted;

3. Japanese Omron temperature control. PID control, SSR output. The temperature is more precise. More reliable quality at high temperatures;
4. Timer: can be set in a variety of ways, (can set seconds, minutes-seconds, minutes, hours-minutes. hours.) With power failure memory function. After the power failure, the call will continue to work according to the set time;
5. Adopt full detection system, light display when fault occurs, convenient for operators to understand the equipment status in time;
6. Heating system: The heating element adopts titanium tube. It is not easy to corrode and has a longer service life;
7. High stability platinum probe, smaller error;

8. Meets mlitary specs MTL-STP-208F, 202.

Model specifications	LG-5027
Inner box size (W×H×D) mm:	500×400×200
Carton size (W×H×D) mm:	600×500×420
Steam temperature (°C):	Upto97°C
Controller PID microcomputer temperature control heating method:	PID+SCR
Heating time:	about 45 minutes control accuracy ±0.5°C
Timer:	9999 min voltage 220V power 2KW
