ST-DSC100A
LUGONG
Product Introduction:

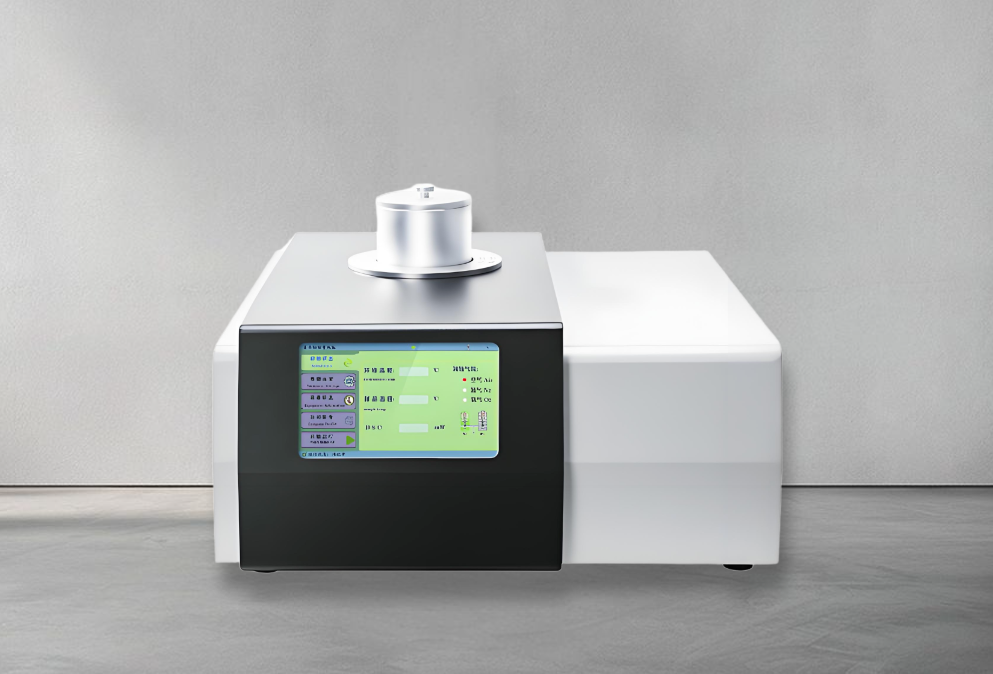

This Scanning Calorimeter（DSC） is the most accurate differential sensor launched by the company. The sensor is made of imported materials and has high sensitivity. The signal acquisition circuit is shielded and protected, with strong anti-interference ability and high baseline stability. The differential scanning calorimeter is a touch screen type that can perform glass transition temperature testing, phase transition testing, melting and enthalpy testing, product stability, curing, oxidation induction period testing, and specific heat testing.Wide range of applications.
Standard Feature
Temperature range: | Room temperature~600 ° C (air-cooled) |
Temperature resolution: | 0.01 ° C |
Temperature fluctuation: | ± 0.01 ° C |
Temperature repeatability: | ± 0.1 ° C |
Heating rate: | 0.1-100 ° C/min |
Constant temperature time: | program setting |
Temperature control method: | PID temperature control, temperature rise, constant temperature (fully automatic program control) |
DSC range: | 0 to ± 600mW |
DSC resolution: | 0.01uW |
| DSC sensitivity: | 0.001mW |
| Working power supply: | AC220V/50Hz or customized |
| Atmosphere control gases: | nitrogen, oxygen (instrument automatically switches) |
| Gas flow rate: | 0-300mL/min |
| Gas pressure: | 0.2MPa |
| Display mode: | 24 bit color, 7-inch LCD touch screen display |
| Data interface: | Standard USB interface |
| Parameter standard: | equipped with standard substances (indium, tin), users can calibrate the temperature by themselves |
| The instrument has multiple sets of thermocouples, one set for testing sample temperature and one set for testing instrument internal environmental temperature | |
| The instrument comes with multi-point calibration function, which can meet the precise testing of high, medium and low samples | |
| The software can set the data collection frequency and export EXECL data packets and PDF reports | |
Curve scanning: | heating scan, cooling scan, constant temperature scan |
Technical features:
1. Industrial grade 7-inch touch screen, displaying rich information.
2. A brand new ceramic furnace structure with better baseline and higher precision. Heating adopts indirect conduction method, which has high uniformity and stability, reduces pulse radiation, and is superior to traditional heating modes.
3. USB communication interface, with strong universality, reliable and uninterrupted communication, supporting self recovery connection function.
4. Automatically switch between two atmospheric flow rates, with fast switching speed and short stabilization time. Simultaneously add a protective gas input.
5. The software is simple and easy to operate.
