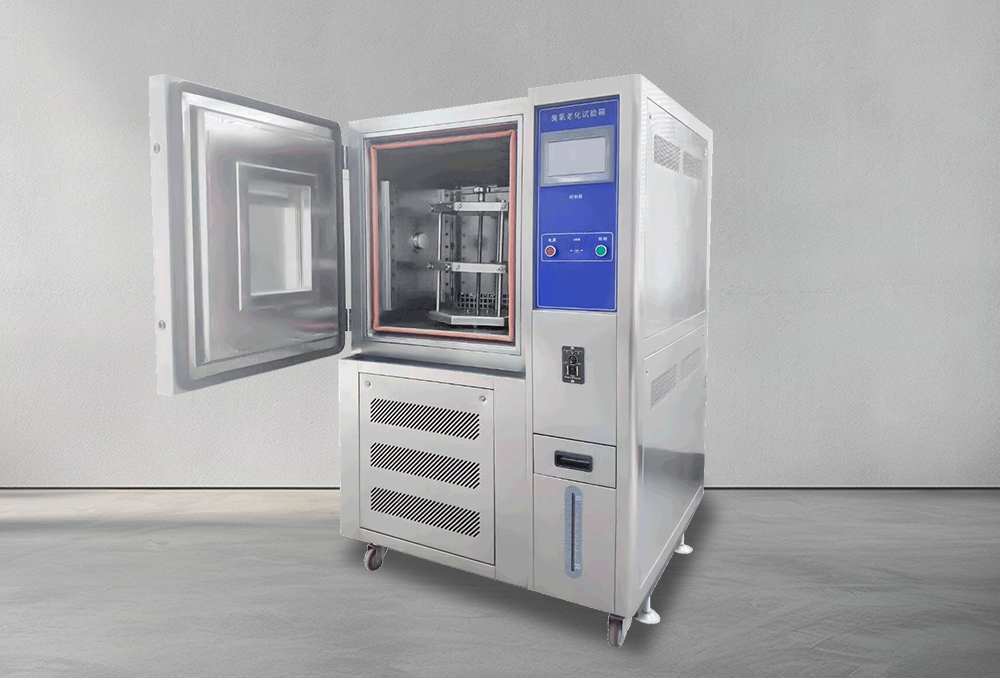

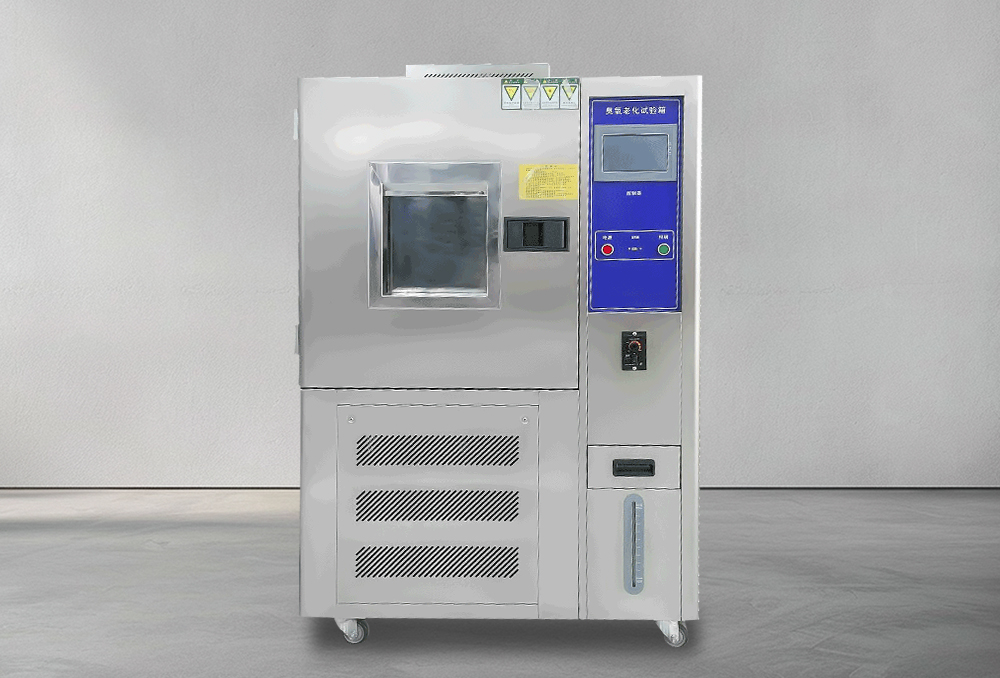

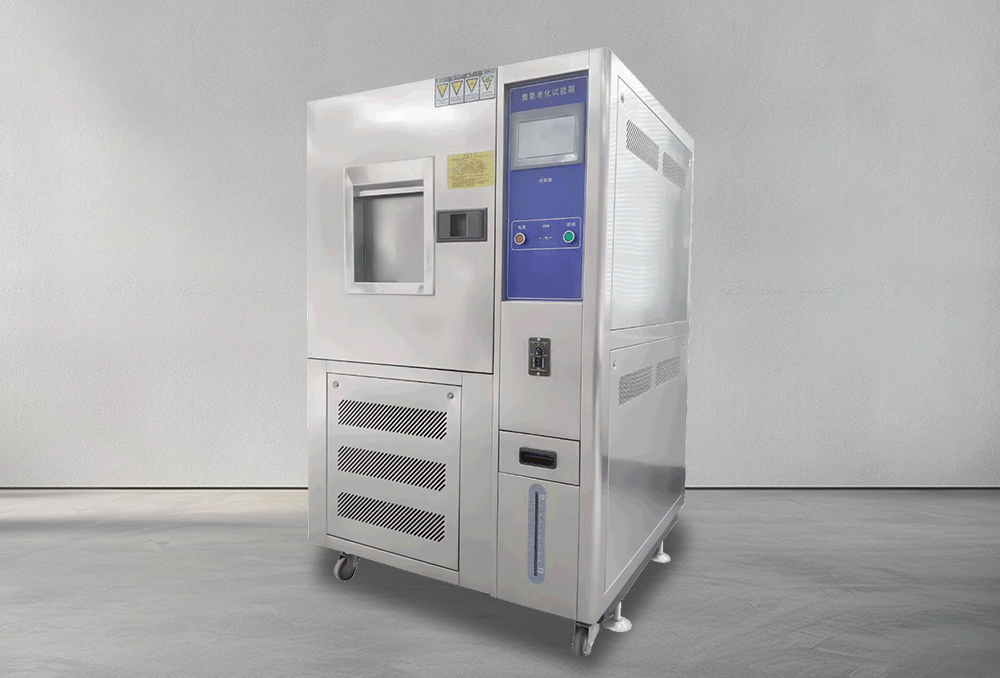

Ozone Aging Test Chamber

Ozone Aging Test Chamber is widely used in aerospace, automotive motorcycles, mlitary equipment, electrical and electronic, chemical metallurgy, quality measurement, post and telecommunications, ship railway and other institutions and colleges and universities and scientific research units.
Ozone Aging Test Chamber can be used for rubber products such as vulcanized rubbers, thermoplastic rubber, cable insulation sheath and other products, in the static tensile or continuous dynamic tensile deformation, or in the intermittent dynamic tensile and static stretching alternating deformation, the test chamber, which is exposed to the airtight air with constant ozone concentration and constant temperature, tests the specimen at predetermined time, from the surface of the specimen to the extent of the crack or other performance, to evaluate the ozone-resistant aging performance of the rubber.

Quantity:
Availability:





Inquire Add to Basket

Brand:
LUGONG

Product Description

Product Description

Ozone Aging Test Chamber is widely used in aerospace, automotive motorcycles, mlitary equipment, electrical and electronic, chemical metallurgy, quality measurement, post and telecommunications, ship railway and other institutions and colleges and universities and scientific research units.

Ozone Aging Test Chamber can be used for rubber products such as vulcanized rubbers, thermoplastic rubber, cable insulation sheath and other products, in the static tensile or continuous dynamic tensile deformation, or in the intermittent dynamic tensile and static stretching alternating deformation, the test chamber, which is exposed to the airtight air with constant ozone concentration and constant temperature, tests the specimen at predetermined time, from the surface of the specimen to the extent of the crack or other performance, to evaluate the ozone-resistant aging performance of the rubber.

Programmable Control System

1, With imported micro-computer LCD controller to control the temperature.

2, PID control

3, With auto calculation function to reduce the setting inconvenience.

4, Heater: fin type radiator pipe nickel-chromium alloy u-shaped heater, auto calculate with high accuracy PID + SSR control

5, Temperature measurement: SUS#304, PT 100

he table parameters is for the company Standard Model parameters, we support customer customization parameters

Chamber Structure And Features
1, Internal material adopts high quality mirror stainless steel for ozone resistance.

2, Insulation material: high-density glass fiber

3, Use long axial fan motor and high and low temperature resistant aluminum alloy wing type wind turbines to force vertical air circulation.

4, Chamber door adopts double layer high and low temperature resistant silicone seal ensure the airtight test area.

5, Chamber bottom has high quality caster for convenient move.

6, Observation window uses multilayer hollow tempered glass.

7, Exhaust system: exhaust the high concentration ozone from the test chamber to avoid to poison.

Model	LG-CY-150L
Internal dimension (WxDxH)	500600500mm
External dimension (WxDxH)	100010001750mm
Temperature range	RT+10~ 60℃ (suggest to use 40℃±2℃)
Temperature Fluctuation	±1℃
Ozone concentration	50~1000 pphm, adjustable
Ozone concentration deviation	±10%
Sample holder	SUS#304 stainless steel
Temperature controller	Programmable touch screen controller
Ozone concentration analysis	Concentration analysis meter
Ozone generator	High pressure silence discharge type
Protection system	Leakage, short circuit, over temperature, over heat
Test criteria	ASTM D1149, ISO 1431, JIS K6259...
