LG-6001A
LUGONG

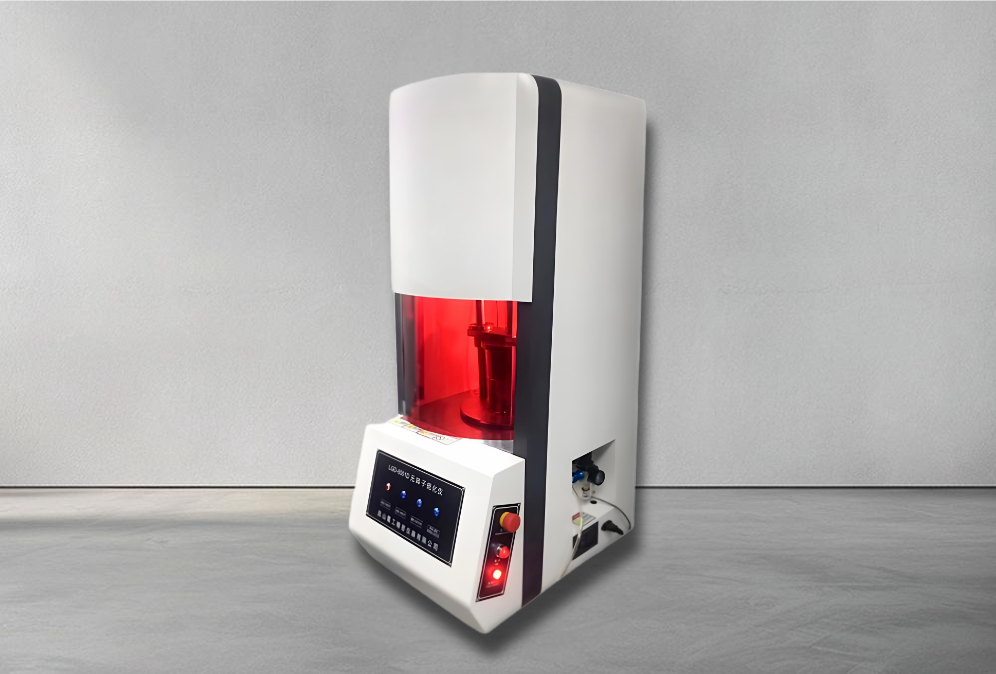

Instrument Introduction:
The computer rotorless vulcanizing instrument adopts a computer-controlled imported temperature controller for precise temperature control. The computer processes data in a timely manner and can perform statistics, analysis, storage and comparison. It is designed with humanization, easy to operate, and accurate in data, providing the most precise data for optimizing rubber formulas. The buttons clicked by the mouse on the computer of this vulcanizing instrument have the same function as the buttons on the main panel, making it easy for users to operate. The software interface of the computer is quite good, and it is extremely convenient to use. Users can accurately measure the burning time, positive vulcanization time, vulcanization index, maximum and minimum torque, etc. It is the most ideal equipment for controlling the quality of rubber materials, rapid inspection, and rubber extrusion research in the rubber industry. ST-6001A type rotorless vulcanizing instrument is a new generation of mechatronics integrated product launched by our factory. It mainly consists of the host, sensors, computer, lower computer data collector, printer, and electrical interlock.
Execution standard:
GB/T1232, GB/T 1233, ISO667, ISO 289 ,ASTM D 1646, JIS K 6300, ASTMD5289－95ISO6502:1991HG/T3709-2003 Provide vulcanization curves, vulcanization rate curves, and temperature curves. Single curve testing, continuous testing of any curve, and comparison testing of any curve can be performed on the same interface. The data is stored in the database and all curve data can be printed in real-time or historically.
Standard Features:
Mold cavity structure: | fully enclosed type |
Temperature control range: | Room temperature -200 ° C |
Temperature fluctuation: | ≤± 0.1 ° C |
Temperature display resolution: | 0.01 ° C Torque range: 0-20N. M |
Torque display accuracy: | 0.001N. M |
Power supply: | 50HZ,~220V ± 10% |
Compressed air: ≥ | 0.40Mpa |
| Swing frequency: | 100cpm (1.7HZ) |
| Swing angle: | ± 0.5. ± 1. |
| Torque range: | (0-5N. m, 0-10N. m 0-20N. m) |
| Automatic ambient temperature: | 0-35 ° C, relative humidity<80% |
| Sulfurization time setting range: | 2-300min, t90 is within the range of 10 seconds to 5 hours. |
| Print content: | date, time, temperature, vulcanization curve, temperature curve ML、MH、ts1、ts2、t10、t90、Vc1Vc2 |
Dimensions: | 600 * 700 * 1250mm |
Key Features:
1. This instrument adopts a truly sealed mold cavity, similar to the American Alpha (formerly Monsanto). Repeatability and test data are comparable to Alpha. Being in a leading position in the international industry.
2. This instrument is based on a large-scale database development platform, and the temperature control device is directly controlled and collected through software. This technology leads the international trend.
3. This instrument has functions such as statistics, analysis, storage, and comparison. Humanized design, easy to operate.
Main configurations:
1. The true high-precision closed cavity structure is synchronized with the American Alpha.
2. Joint venture high-precision sensor with an accuracy of 0.001N.M3 and Japanese NSK high-precision bearings.
4. Sino British joint venture SDPC Group high-performance cylinder.
5. Sino foreign joint venture Delixi pneumatic components.
6. A powerful dedicated module with advanced technology that synchronizes experimental data with alpha.
7. The work door has automatic lifting and safety protection.
8. The key parts of electronic components are made of military grade components, which are reliable in quality and stable in performance.
9. The computer software directly controls the temperature, and the alpha technology has an accuracy of 0.01 ° C.
10. 19 inch Lenovo LCD computer, HP color printer.
11. Taiwan has established SUNON cooling fans to protect electrical appliances from malfunctions and ensure worry free operation.
