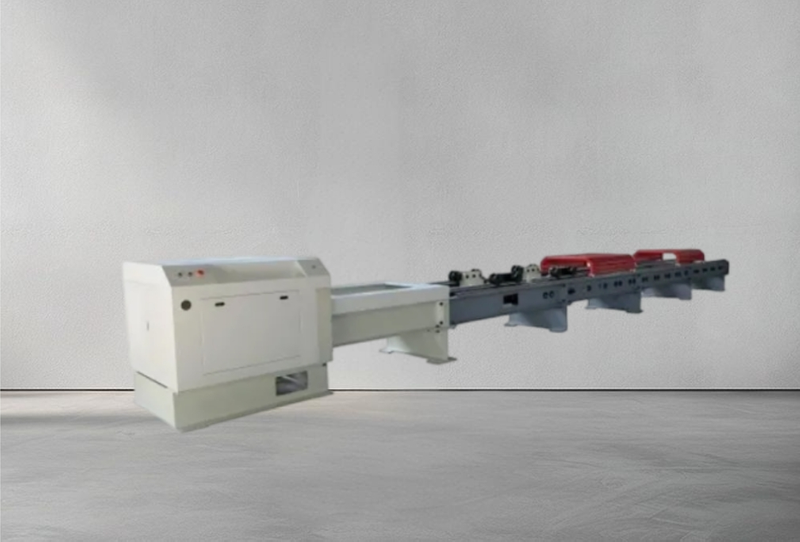

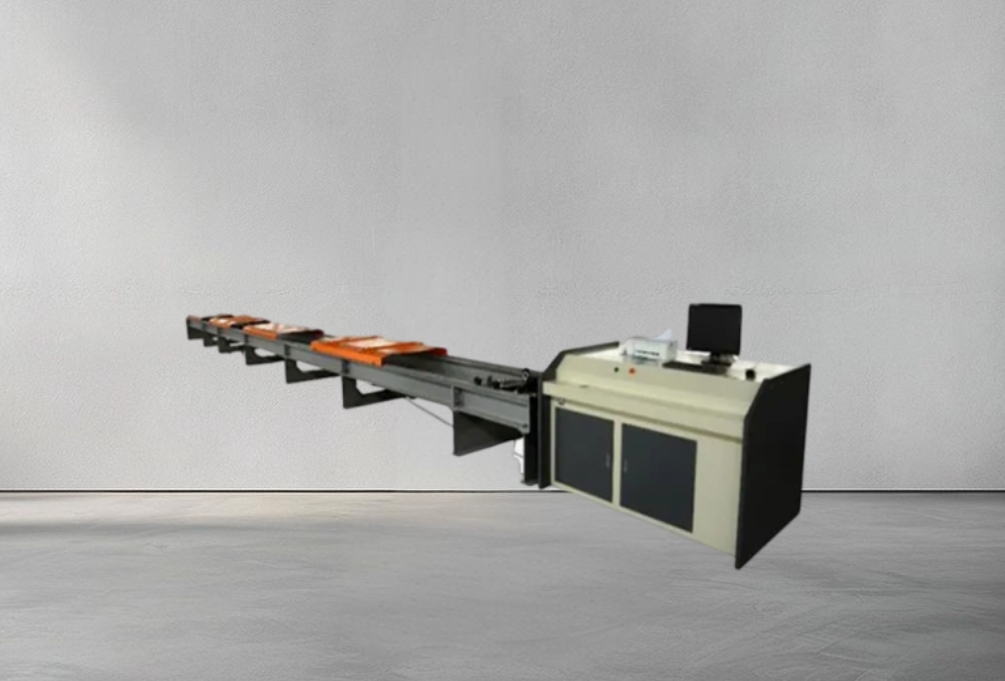

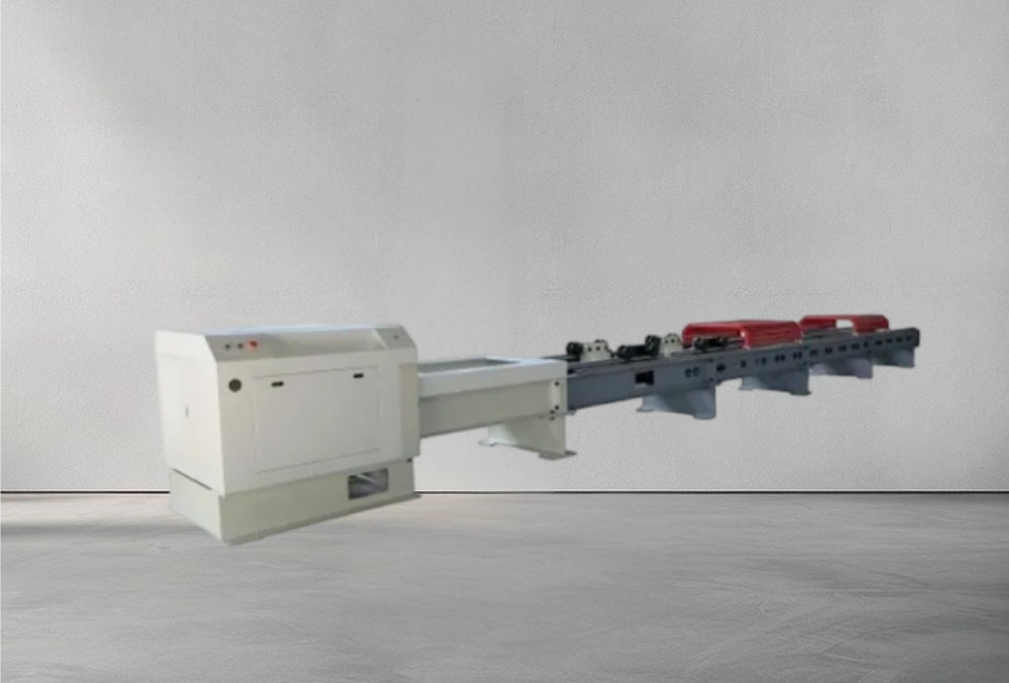

Microcomputer Controlled Horizontal Tensile Testing Machine

Microcomputer Controlled Horizontal Tensile Testing Machine

The microcomputer controlled horizontal tensile testing machine is mainly used for aluminum stranded wire, steel strand, wire rope, safety belt, foot buckle, and electric power The tensile test of fittings and other products can detect the test force, maximum force, tensile strength and other indicators in real time, and force-deformation, force-time Interval curves, reports can be printed according to customer requirements. The machine is a horizontal frame structure, which is composed of fixed beams, moving beams, frames,Bearings, ball screws, fixtures and other host components; AC servo motors, drives, timing belts and pulleys and other power and transmission part;

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Introduction:

The microcomputer controlled horizontal tensile testing machine is mainly used for aluminum stranded wire, steel strand, wire rope, safety belt, foot buckle, and electric power The tensile test of fittings and other products can detect the test force, maximum force, tensile strength and other indicators in real time, and force-deformation, force-time Interval curves, reports can be printed according to customer requirements. The machine is a horizontal frame structure, which is composed of fixed beams, moving beams, frames,Bearings, ball screws, fixtures and other host components; AC servo motors, drives, timing belts and pulleys and other power and transmission part; Control parts such as sensors, encoders, controllers, computers and control software. It has high detection accuracy,Stable performance, reliable quality, beautiful appearance, convenient operation and other characteristics.

Applicable Standards

The computer controls the rotation of the AC servo motor through the speed regulation system, and moves through the high-precision ball screw pair after deceleration by the deceleration system The beam moves left and right to complete the tensile mechanical properties test and analysis of metal and non-metal samples. ReH, ReL,Rp0.2, Fm, Rt0.5, Rt0.6, Rt0.65, Rt0.7, Rm, E and other test parameters, and can be based on GB, ISO, DIN,ASTM, JIS and other international standards to conduct tests and provide data, is the best way for factories and mining enterprises, power towers, scientific research institutes, colleges and universities,Ideal testing equipment for quality supervision and other industries.

GB/T 16491-2008 "Electronic Universal Testing Machine";
GB/T228.1-2010 "Tensile testing of metallic materials - Part 1: Room temperature test method";
This testing machine is applicable to standards such as GB, JIS, ISO, ASTM, DIN, etc;
This testing machine is packaged and transported according to the GB/T13384-2013 standard;

Maximum test force:	200kN;
Test force measurement range:	0.4%~100%F.S (maximum force);
Relative error of test force indication value:	≤±1%;
Test force resolution:	1/300000 of the maximum test force;
Relative error of displacement measurement:	±1%;
Resolution of displacement measurement:	0.01mm.
Displacement speed adjustment range:	0.05~300mm/min, stepless speed regulation;
Effective test space:	3000mm;
Stretching stroke:	3000mm;
Effective test width:	≥600mm;
1 set of aluminum stranded wire stretching fixture;
Host dimensions (length×width×height):	3600×920×980 (mm);
Working environment and voltage:	room temperature: 10°C~35°C, relative humidity: 20%~80%;
Host power supply:	three-phase AC380V±10% 50Hz
Power supply:	2KW
