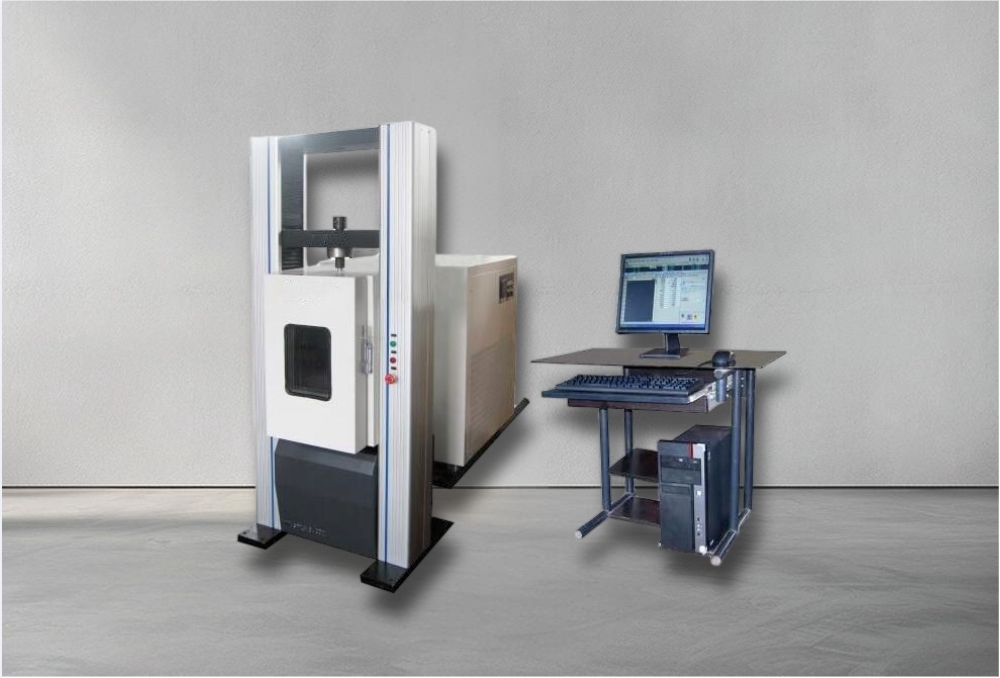

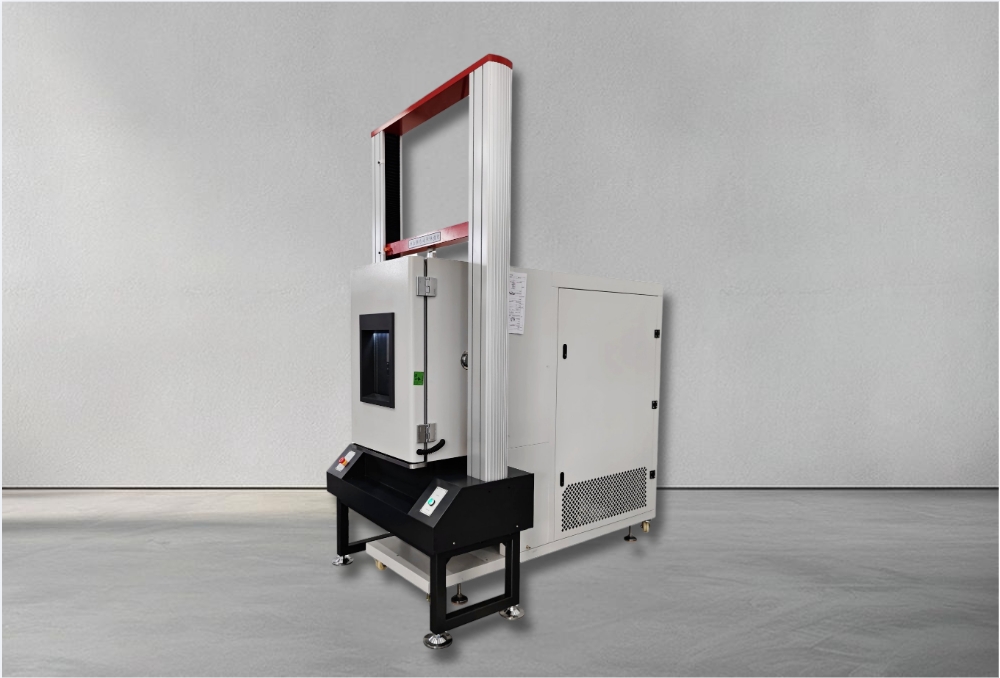

High And Low Temperature Tensile Testing Machine

High And Low Temperature Tensile Testing Machine

The computer-controlled universal testing machine adopts a luxurious testing software interface, which can achieve control modes such as constant speed, positioning, and shifting. With multi-level control modes, it can meet different testing requirements. Overload emergency stop device, upper and lower travel limit device, automatic breakpoint stop. Covering testing standards and specifications such as GB, ASTM, DIN, JIS, BS, etc. Randomly switch between multiple languages: Simplified Chinese, Traditional Chinese, English. WIN-XP testing software computer screen display. RS232 transmission. Provide user settings for all sample data, input data can be permanently reused. Each length, force unit, and display number are dynamically interchangeable. The automatic scaling of graphical curves is used to display graphics at the optimal scale. During the testing process, it can dynamically switch between real-time graphics.

Quantity:
Availability:





Inquire Add to Basket

Brand:
LUGONG

Product Description

Maximum test force	10KN	20KN	30KN
Force measurement range	0.2%-100%FS is not divided into bins
Force accuracy	± within 0.5%.
Force resolution	1/±300000 of maximum force (no change in resolution throughout the process)
Deformation measurement range	0.2%-100%FS
Relative error of the deformation indication	The ± of the indicated value is within 0.5%.
Deformation resolution	1/±300000 of the maximum deformation
High and low temperature chamber size	300mm300mm500mm[Special requirements to be determined]
Temperature range	-40-150°C[Special requirements to be determined]
Temperature fluctuations	±0.5℃
The relative error of the displacement indication value	The ± of the indicated value is within 0.5%.
Displacement resolution	0.05µm
Force control rate adjustment range	0.01-5%FS/S
Relative error of force control rate	Within 0.5% of the ± of the set value
The deformation rate adjustment range	0.02—5%FS/S
The deformation control rate is relative error	Within 0.5% of the ± of the set value
Beam speed adjustment range	0.01—200mm/min
Relative error of beam velocity	When the rate is < 0.01mm/min, the ± of the set value is within 1.0%; At a rate ≥ 0.01mm/min,
Constant force, constant deformation, constant position Shift the control range	0.5%--100%FS
Constant force, constant deformation, constant position Shift control accuracy	When the set value < 10%FS, it is within ±1% of the set value; When the setting value ≥ 10%FS, it is the set value ± 0.1% or less

Effectively stretch the space at room temperature	800mm[Special requirements to be determined]
High and low temperature effectively stretch the air	400mm[Special requirements to be determined]
Effective test width	400mm
Dimensions of the main unit (L×W×H)	800×600×2000(mm)

Instrument features:

1. Automatic clearing: After the computer controls the test instructions, the system automatically clears;

2. High intelligence: After the test, the fracture is automatically judged, and the fixture automatically returns to the initial position

3. Multi-function: different fixtures can be replaced to carry out different tests;

4. Automatic gear shifting: switch different grades according to the size of the load;

5. Change speed: The test speed can be changed arbitraril

6. Control method: test force, test speed, displacement, strain and other test methods can be selected.

7. Super function: record the test data throughout the process. Provides functions such as saving, comparing and tracking, which can be done with the mouse.It is intended to find out the point-by-point force value and deformation data analysis of the test curve, and can be locally enlarged for comparison.

8. Multiple protection: with automatic limit and overload automatic protection functions.

9. Automatic calculation: automatically calculate various test results, and can modify the report arbitrarily

10. Automatic length measurement: equipped with a high-precision encoder to automatically measure the displacement stroke and the elongation between punctuation points.
