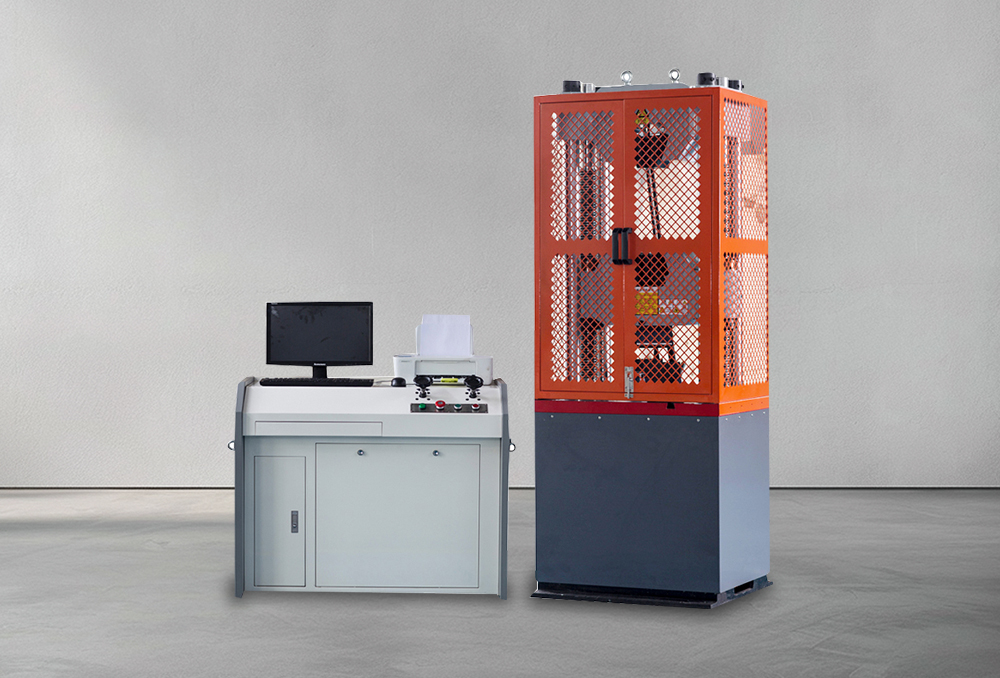

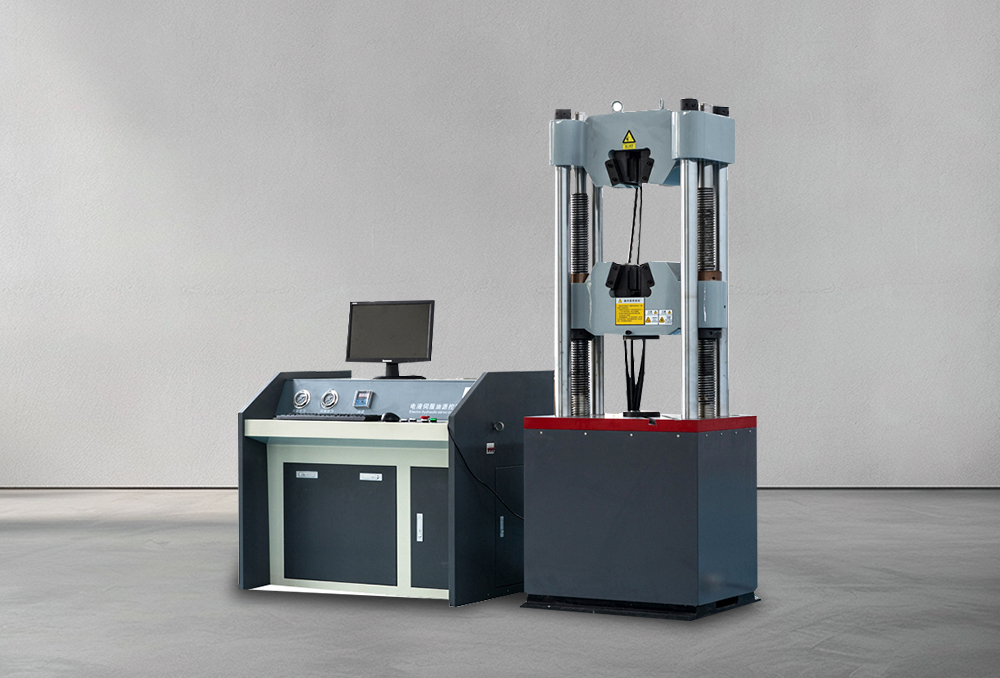

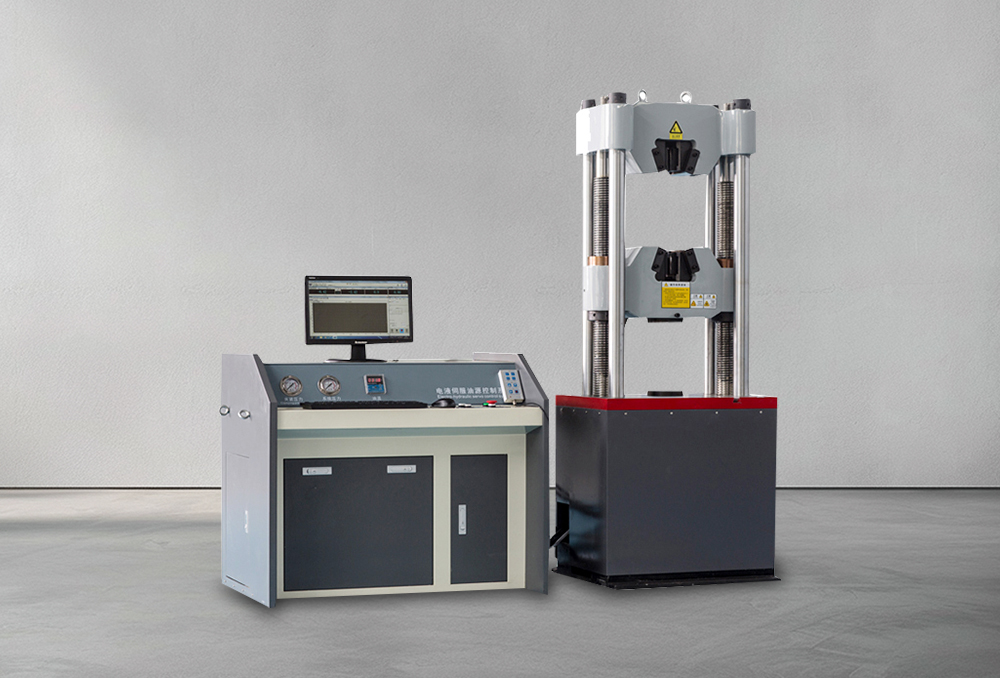

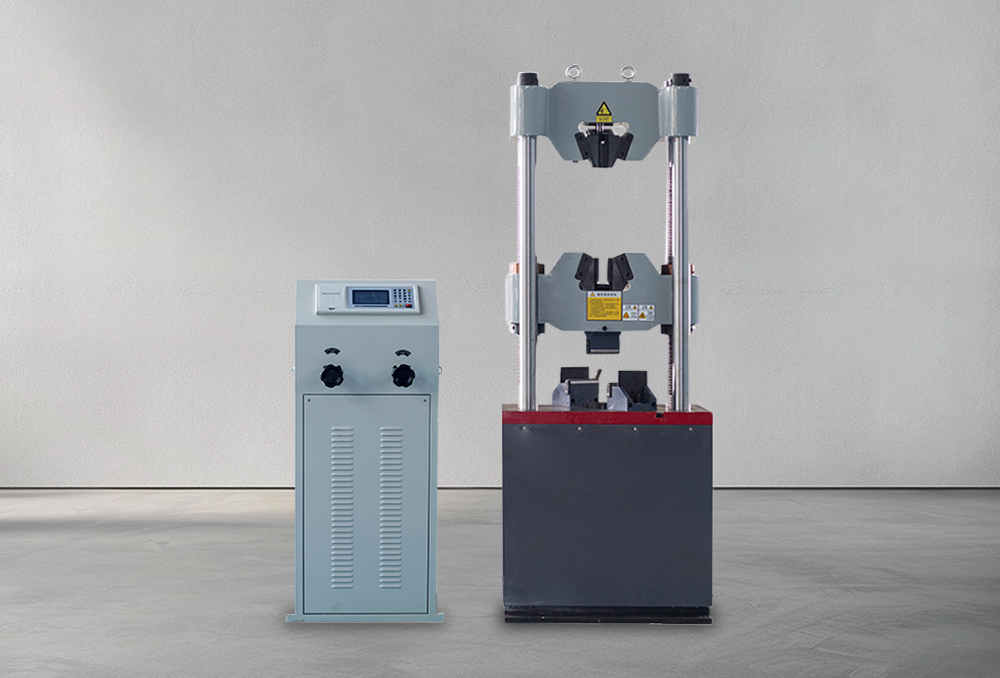

Microcomputer-Controlledelectro-Hydraulic Servo Universal Testing Machine

Microcomputer-Controlledelectro-Hydraulic Servo Universal Testing Machine

Microcomputer-Controlled Electro-Hydraulic Servo Universal Testing Machine main unit adopts a submersible cylinder structure, primarily used for tensile, compressive, and bending mechanical performance tests on metal materials, non-metallic materials, product parts, components, structural components, and standard parts.
Microcomputer-Controlled Electro-Hydraulic Servo Universal Testing Machine, compressive, and bending tests under specific environmental conditions when equipped with environmental devices. For example: high-temperature tensile tests, low-temperature tensile tests, compressive tests, etc.
Suitable for industries such as steel, metallurgy, construction materials, quality inspection centers, water conservancy and hydropower, highway bridges, research institutions, universities and colleges, mechanics, and other factories, enterprises, and testing research organizations.

Quantity:
Availability:





Inquire Add to Basket

Brand:
LUGONG

Product Description

Model	STD-304W	STD-604W	STD-1006W	STD-2006W
Maximum Test Force kN	300	600	1000	2000
Test Force Reading	≤ reading of ±1%
Test force measurement range	2%~100% of maximum test force
Constant speed stress control range (N/mm2·S-1)	2~60
Constant speed strain control range	0.00025/s~0.0025/s
Constant speed displacement control range (mm/min)	0.5~50

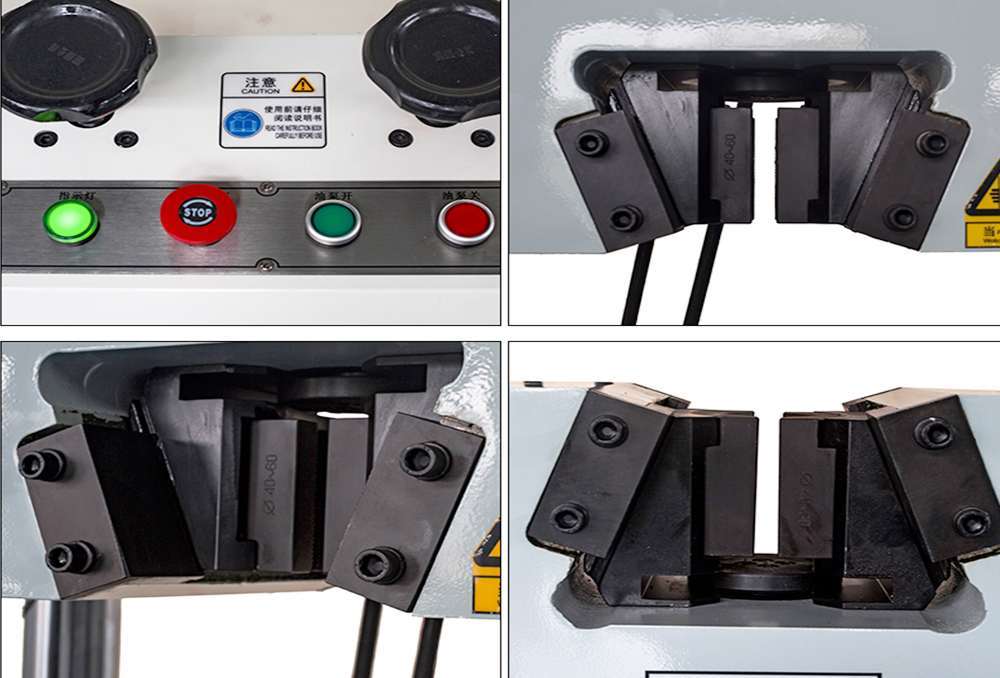

Round specimen chuck diameter range mm	Φ4~Φ32
Flat specimen chuck thickness range mm	0~15
Width of flat sample chuck mm	70
Maximum tensile test space mm	550
Maximum compressive test space mm	500
Control cabinet external dimensions mm	1100×620×850
Main unit external dimensions mm	730×590×1900
Motor Power kW	2.3
Host weight kg	1200
Allowable Bending Degree mm	100
Maximum Piston Stroke mm	200
Maximum piston movement speed mm/min	about 80
Test space adjustment speed mm/min	Approximately 150

Standards for product manufacturing and inspection

Manufacturing and inspection standards for products
1. GB2611 "General Technical Requirements for Testing Machines"
2.JJG139 "Tensile, Pressure, and Universal Testing Machine"
Applicable test method standards
The experimental operation and data processing shall comply with GB/T228 "Tensile Test Method for Metallic Materials at Room Temperature" and GB/T7314 "Metallic Materials
There are hundreds of standard requirements such as "Room Temperature Compression Test Method for Materials" and GB/T232 "Bending Test Method for Metal Materials". And can
Configure data processing methods that meet different standards according to customer needs.
