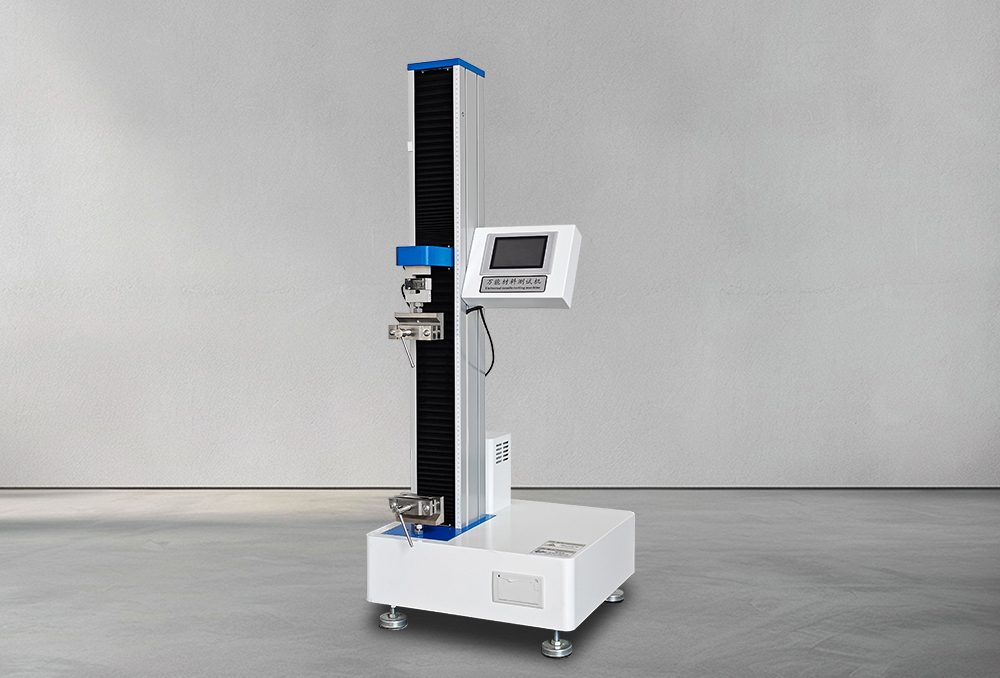

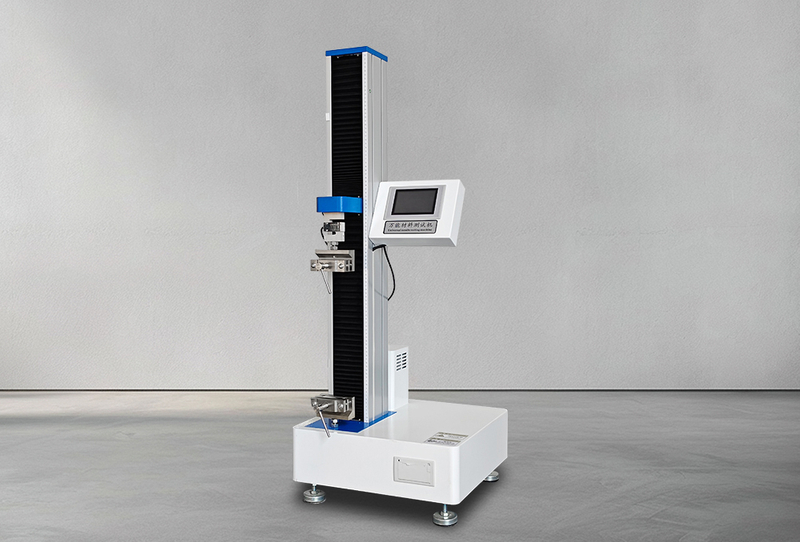

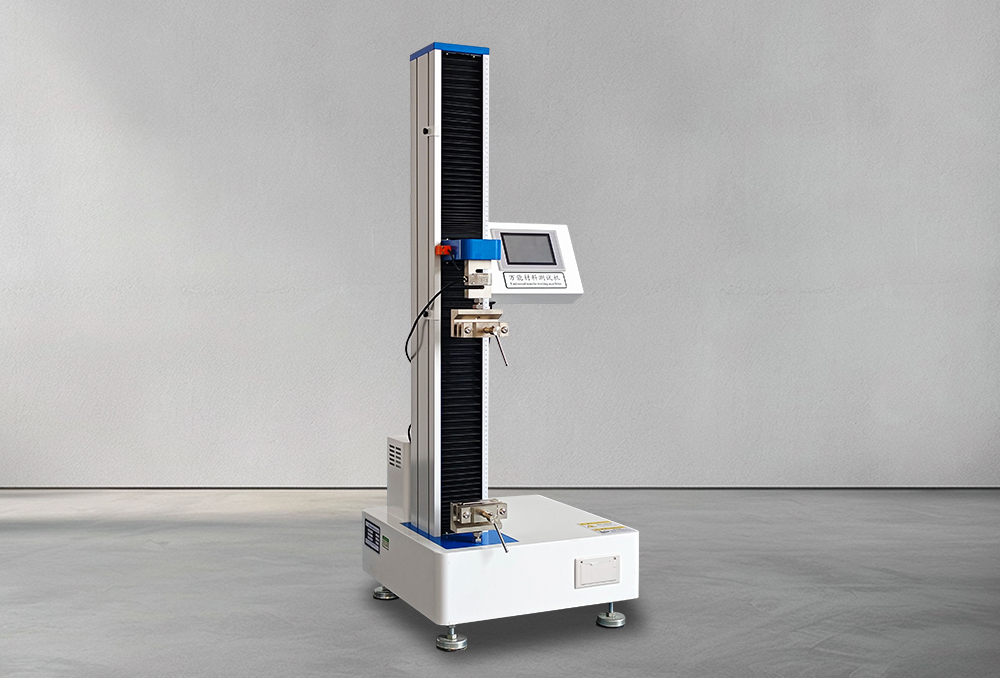

Digital Single Column Electronic Tensile Testing Machine

Digital Single Column Electronic Tensile Testing Machine

Microcomputer-controlled electronic universal testing machine is used for static performance testing and analysis of metal and non-metal (including composite materials) in terms of tension, compression, bending, shear, peeling, tearing, holding, relaxation, reciprocating, etc. It can automatically obtain test parameters such as ReH, ReL, Rp0.2, Fm, Rt0.5, Rt0.6, Rt0.65, Rt0.7, Rm, E, and can conduct tests and provide data according to relevant domestic and international standards such as GB, ISO, DIN, ASTM, JIS, etc.

Quantity:
Availability:





Inquire Add to Basket

Brand:
LUGONG

Product Description

Equipment model	STX50	STX100	STX200	STX500	STX1000	STX2000	STX5000
Maximum test force	50N	100N	200N	500N	1000N	2000N	5000N
Accuracity level	Level 0.5
Test force measurement range	0.2% to 100% FS (full range)
Error of test force display value	Within 0.5% of the display value
Test force resolution	The maximum test force of ±1/300000 is not graded throughout the whole process, and the resolution of the whole process remains unchanged.
Deformation measurement range	0.2% to 100% FS
Deformation display error	Within ±0.5% of the display value
Deformation resolution	The maximum deformation is 1/200000/up to 1/300000
Displacement display error	Within ±0.5% of the display value
Displacement resolution	0.001 millimeter
Force control rate adjustment range	0.005~5% free software/second
Force control rate control accuracy	When the speed is <0.05%FS/s, it is within ±2% of the set value. When the rate is ≥0.05%FS/s, it is within ±0.5% of the set value.
Deformation rate adjustment range	0.005~5%FS/second
Deformation rate control accuracy	When the speed is <0.05%FS/s, it is within ±2% of the set value. When the rate is ≥0.05%FS/s, it is within ±0.5% of the set value.
Displacement rate adjustment range	0.001~500 mm/min
Displacement rate control accuracy	The speed is <0. 5 mm/min, the rate ≥0 within ±1% of the set value.At 5mm/min, it is within ±0.2% of the set value.
Effective stretching itinerary	700mm (can be customized according to user requirements)
Effectively compress the itinerary	700mm (can be customized according to user requirements)
External dimensions of the host (length × width × height)	(450×370×1400)mm
Mainframe weight	About 90 kilograms

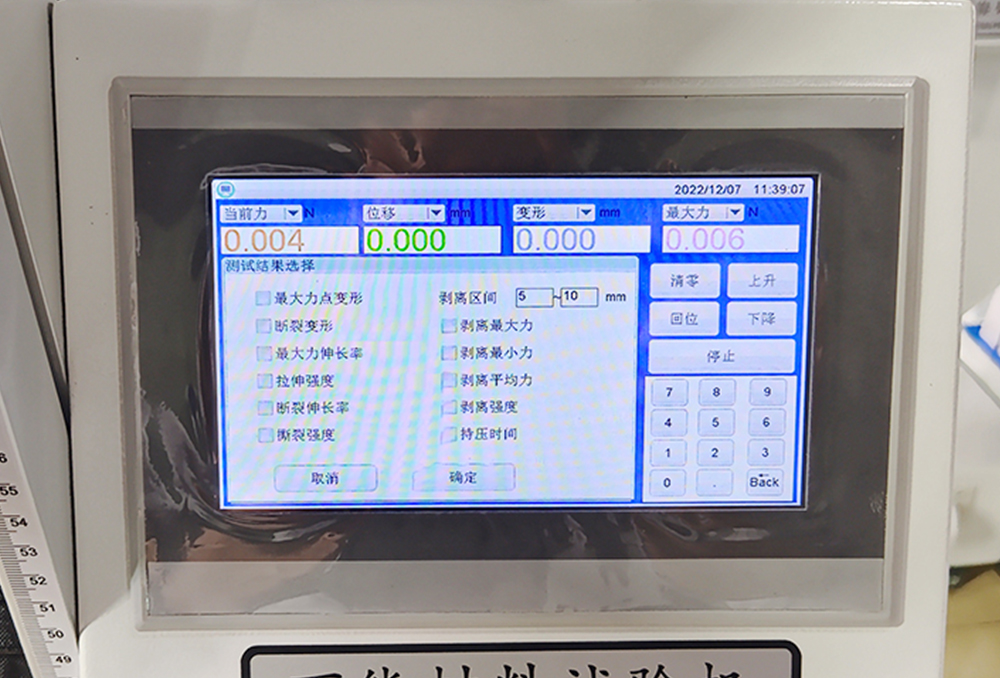

Microcomputer-controlled electronic universal testing machine adopts advancedTest 4.0The all-digital closed-loop control system is used for control and measurement, and the computer is used for the dynamic display of the test process and test curve, and data processing is carried out. After the test, the curve can be enlarged through the graphics processing module for data reanalysis and editing, and the performance reaches the international advanced level.

1.FullNow dedicated displacement, deformation and speed closed-loop control: during the test, the test speed and test method can be flexibly changed to make the test scheme more flexible and fulfilling;

2.Multi-layer protection: with software and hardware protection functions, it can realize a variety of safety protection methods such as overload, overcurrent, overvoltage, undervoltage, overspeed, limit and so on the testing machine;

3.3Road Expressway24PlaceA/DConvert the channel, and the resolution of the valid code value can reach up to±30One in ten thousand, it realizes that there is no separation between inside and outside, and the resolution of the whole process remains unchanged;

4.UseUniversal serial busOr serial communication, stable and reliable data transmission, strong anti-interference ability;

5.UseThreeRoad pulse signal capture channel (ThreeThe road pulse signals are respectivelyOneRoad displacement andTwoRoad large deformation signal), and the current most advanced quadruple frequency technology is used to amplify the number of effective pulses by four times, greatly improving the resolution of the signal, and the highest capture frequency isFive MHz;

6.All the way servo motor digital drive signal,PWMThe highest frequency of output isFive MHz, the minimum is0.01 Hz.
