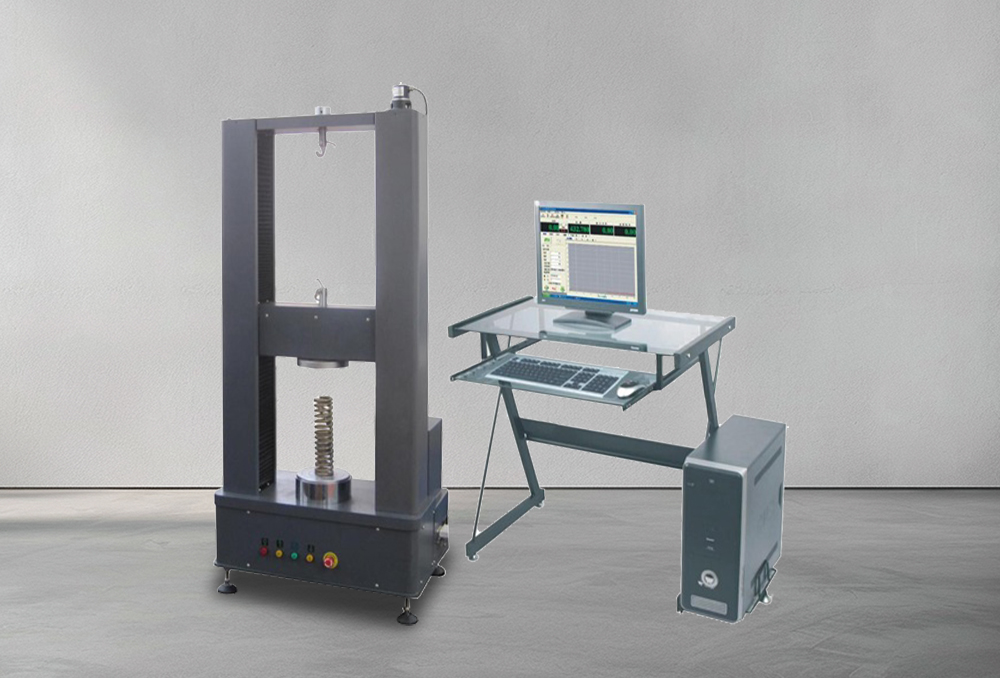

Spring Tensile And Compressive Performance Testing Machine

Spring Tensile And Compressive Performance Testing Machine

Spring Tensile and Compressive Performance Testing Machine
This testing machine is refined based on JB/T 8064.1-1996 "Design and Calculation of Gas Springs". It is mainly used for testing
Test the strength of the gas spring and the elastic element, that is, the height (deformation) of the test spring under a certain test force or in one
The test force of the spring is measured at a fixed height (deformation).
Technical features:
1. With limit function, the limit position protection switch is limited at the limit position of compression to prevent misoperation.
2. Exclusive maximum force setting function, effectively prevent the gas spring from causing damage to the equipment in unexpected situations.
3. Exclusive displacement protection setting function
4. Exclusive deformation protection setting function
5. There is an emergency stop function, if there is an accident in the test, it can be stopped urgently.

Quantity:
Availability:





Inquire Add to Basket

Brand:
LUGONG

Product Description

Specification

Equipment model	STS-10TL	STS-50TL	STS-100TL
Maximum testing machine (N)	10000N	50000N	100000N
Measuring range (N)	400N-10000N	2000N-50000N	4000N-100000N
Minimum resolution of experimental force	0.1N
Relative error of force indication	≤±1.0%
Relative error of indication repeatability	≤1.0%
Relative error of zero point of experimental force	≤±0.1%F*N
Testing speed	0.01~500mm/min
Test speed error	≤±(50+0.15l) um Note:1 is the distance between the pressure plates measured at any position (mm)
pressure plate (mm)	∅200mm
Parallelism error of upper and lower platens(mm)	≤0.1mm
Upper and lower platen offset errors	≤0.1mm
Power supply voltage AC(V)	220V±10% 50HZ
Dimensions: L× W× H	780×550×1850
WEIGHT (KG)	About 350 (excluding computer)
Enforce the standard	This testing machine is based on JB/T 8064.1-1996 "Design and Calculation of Gas Springs".

Test Features:

The working process of this testing machine is automatic test mode, and the test parameters of the spring are combined with the control mode

The intelligent control system determines the control mode of the test process according to the category of parameters to ensure the adoption of test parameters High efficiency of the set, display and test process.

1. Enter the height of the spring and measure the corresponding test force. (The test parameters of the spring are stored in the file, and can be called during the next test, the same below)

2. Enter the test force of the spring, and measure the corresponding deformation or test height.

3. The setting of the above parameters, if it is a batch test, then only need to enter once, the operator only takes the spring and presses the test key, and the rest is all completed automatically, with high efficiency and convenient operation.

4. The displacement resolution is 0.001mm, which is more suitable for testing all kinds of springs.

5. The test speed can be determined according to the speed requirements of the gas spring.

6. The height-force curve can be drawn simultaneously at the same time as the test.
