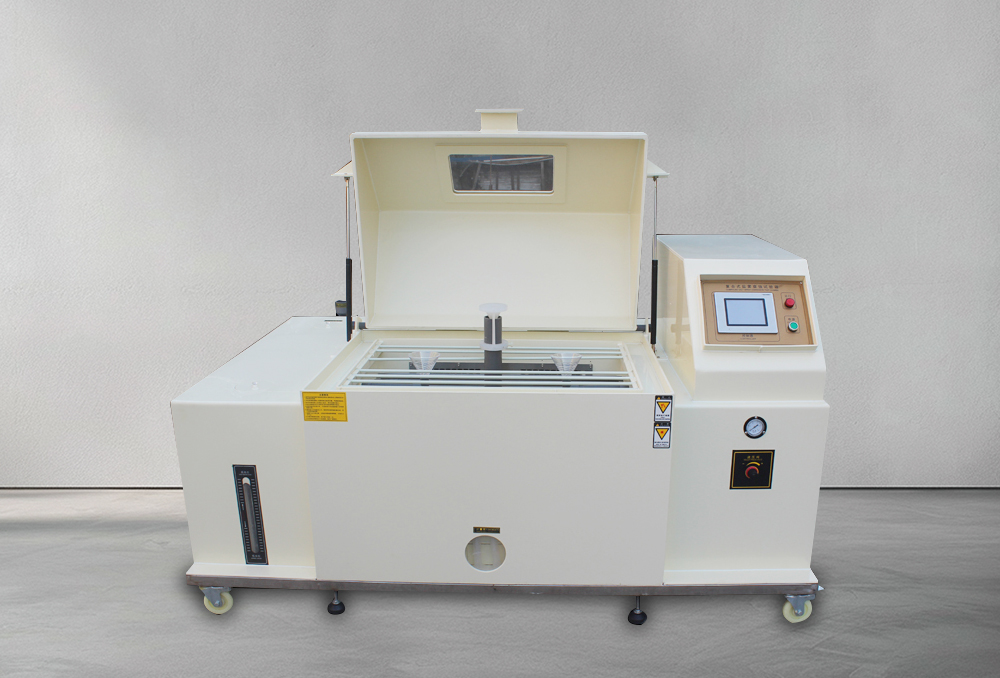

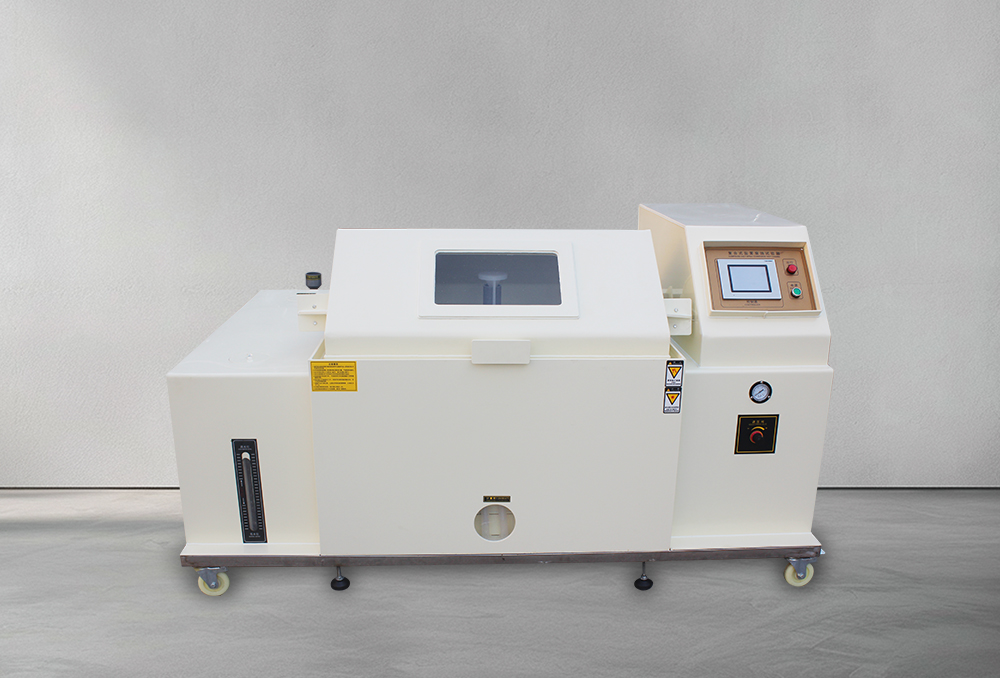

Composite Salt Spray Corrosion Test Chamber

Composite Salt Spray Corrosion Test Chamber

Salt Spray Test Chambers are commonly used in various industries, including automotive, aerospace, marine, electronics, and construction, where materials and coatings are susceptible to corrosion due to exposure to saltwater, humidity, and aggressive environmental conditions.

Quantity:
Availability:





Inquire Add to Basket

Brand:
LUGONG

Product Description

Model	LG-60F	LG-90F	LG-120F	LG-160F	LG-200F
Inner dimension WxHxD(mm)	600x400x450	900x500x600	1200x600x800	1600x600x1000	2000x600x1000
Exterior dimension WxHxD(mm)	1050x1000x680	1410x1110x810	2080x1300x1050	2430x1400x1250	2830x1450x1250
Installed power	1.5(kw)	2.5(kw)	3.5(kw)	4.5(kw)	4.5(kw)
Brine tank capacity	15L	25L	40L	40L	40L
Number of collectors	1	2	2	2	2
Number of spray towers	1 group	1 group	2 groups	2 groups	2 groups
Temperature range	RT+10℃~60℃
Humidity range	≥85% R.H or more (dry and wet bulb comparison table calculation)
Temp.uniformity	≤±1℃
Temp.fluctuation	≤±0.5℃
Pressure barrel temperature	RT+10℃~80℃
Salt Mist Settling Volume	1~2ml/h.80cm² (collected for at least 16 hours, average value taken)
Spray pressure	1.00±0.01kgf/cm²
PH value (PH)	PH=6.5~7.2(NSS)/PH=3.0~3.3(ACSS,CASS)
Test time	1~999(S,M,H)(Adjustable)
Saline solution concentration	Sodium chloride solution concentration 5% (neutral salt spray)
	Sodium chloride solution 5%+ glacial acetic acid (acetate spray)
	Sodium chloride solution concentration 5% + glacial acetic acid + 0.26g CuCl2/L (copper accelerated salt spray)
Spray way	Continuous spraying + intermittent spraying

Heating methods			Direct steam heating method
Controller			Push button digital display controller

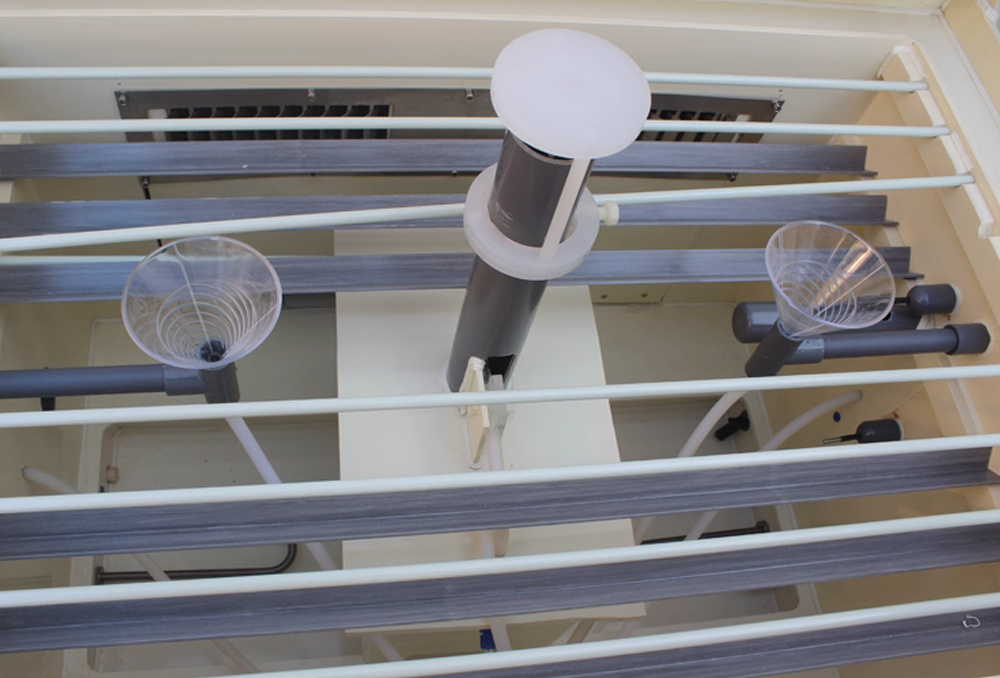

Standard configuration			1 round bar, 1 V-shaped sample holder, 2 nozzles, 2 sets of funnels and 2 sets of measuring cylinders
Safety protection device			Over temperature protection
			Lack of water protection
			Over current protection
Power supply			AC 220V/50HZ

Feature introduction

Continuous salt spray exposure is widely used to test the corrosion resistance of components and coatings. Applications include industrial, maintenance, construction and marine coatings; electroplating and paint layers; Aerospace & Mlitary Coatings, Surfaces & Components, Electrical & Electronic Systems & Components.

Most of these tests are widely used in related corrosion tests according to special specifications, and are generally run at higher temperatures, excluding drying cycles. It is required that the air that is sprayed should be heated before entering the nozzle.

During the salt spray function, the chamber behaves like a typical conventional salt spray operation.

The jet solenoid valve opens and the compressed air passes through the saturator to humidify (humidity helps to keep the pH concentration stable) before reaching the nozzle.

The corrosive solvent from the brine tank is drawn to the nozzle, where it is mixed with the compressed air.

The nozzle sprays the salt water solvent and air into a corrosive mist.

The box heater maintains the programmed box temperature.

This feature is also used for pure water mist exposure.

Criteria met

GB/T5170.8, GB/T10587, GJB150.11, GB/T10125, GB/T2423.17 and other standard requirements;

DIN50021 DIN50017 DIN50907 ISO 11977 ISO 9227 ASTM B117 ASTM G85 Specifications for Automotive and Other Industrial Specifications:

Spray method:

1. Adopt Bernet's principle to absorb brine and then atomize, the atomization degree is uniform, and there is no phenomenon of blocking crystallization, so as to ensure the standard of continuous testing.

2. Nozzle: Made of special glass nozzle, the size of the spray volume and the spray angle can be adjusted.

3. Spray volume: adjustable 1.5±0.5 ml 80cm2/hr (16-hour average volume).

4.40L LARGE BRINE STORAGE TANK, CAN BE SPRAYED CONTINUOUSLY FOR 48HR.
