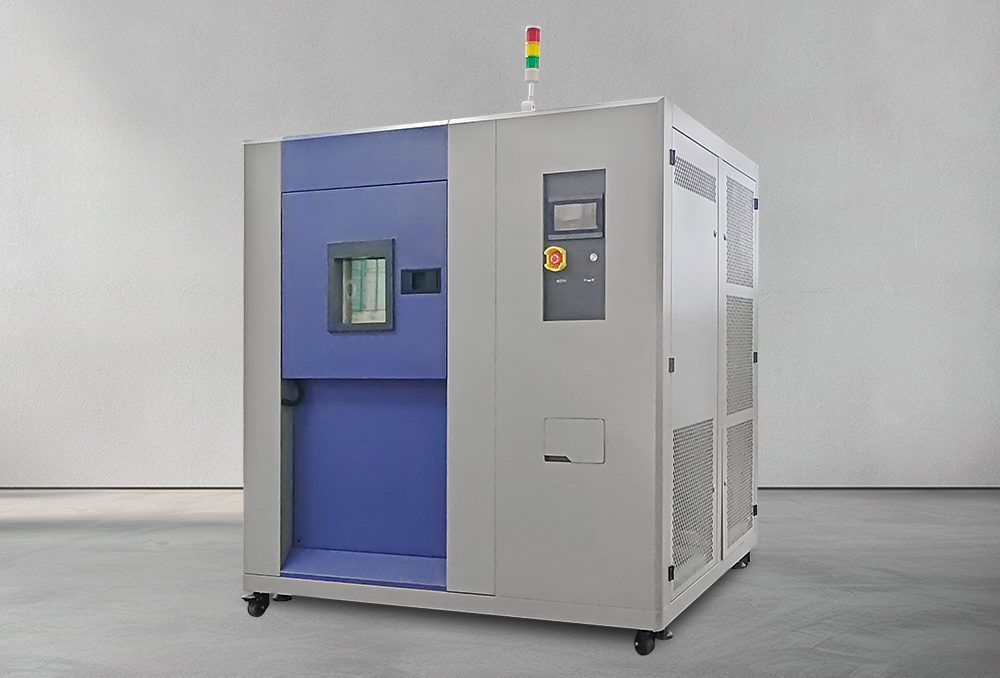

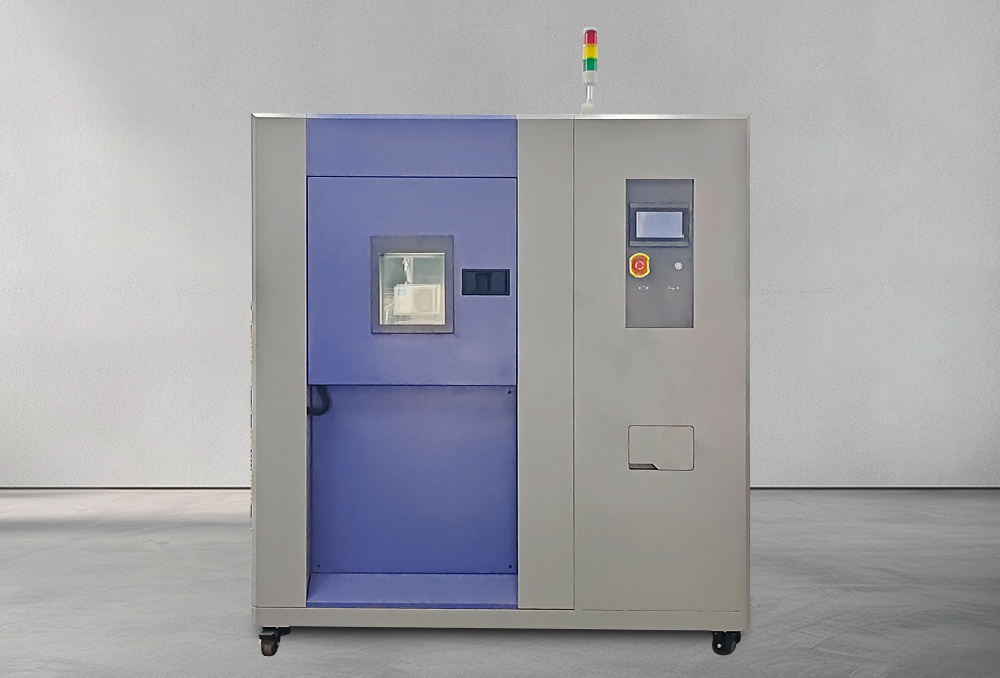

Three Box Thermal Shock Test Chamber

The 3-zone thermal shock test chamber is used to test the degree of load-bearing of products in instantaneous continuous high and very low-temperature environments and to test the chemical changes or physical damage caused by them in the shortest possible time.It is the ideal test equipment for testing electronic components, metals, chemical materials, the aerospace industry, BGA, PCB boards, IC, semi-conductive ceramics, etc.

Quantity:
Availability:





Inquire Add to Basket

Brand:
LUGONG

Product Description

Model	LG-50HC	LG-80HC	LG-100HC	LG-150HC	LG-225HC
Inner dimension WxHxD(mm)	400×350×350	500×400×400	500×400×500	600×500×500	700×600×600
Preheating temperature	60℃~200℃
Heating time	Room temperature → + 200 ℃ ≤ 30 min
Pre-cooling temperature lower limit	-80℃
Cooling time	Room temperature → – 80 ℃ ≤ 75 min
High temperature impact range	+60℃~+150℃ ( Customized to 180℃, 200℃)
Low temperature shock range	L:-10℃~-40℃ F:-10℃~-55℃ X:-10℃~-65℃
Temp. fluctuation	≤±0.5℃
The temperature deviation	≤±2℃
Temperature recovery time	≤5 min
Switching time	Within 3 seconds
Exterior material	Cold rolled plate + Powder coating

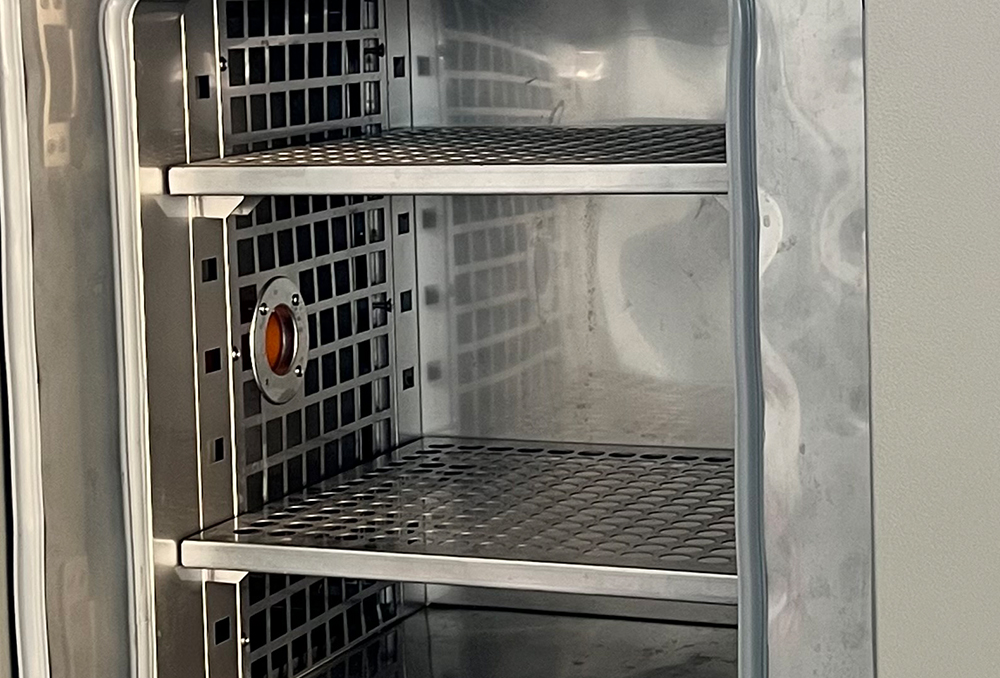

Interior material	SUS#304 Stainless Steel
Insulation material	Rigid Polyuethane Foam and Glass Fiber Wool
Refrigeration system	Air(Water)cooling condenser
	Fully hermetic worm-rotor type freezers or semi-hermetic screw-type compressors
Noise	≤65 dba or ≤75 dba

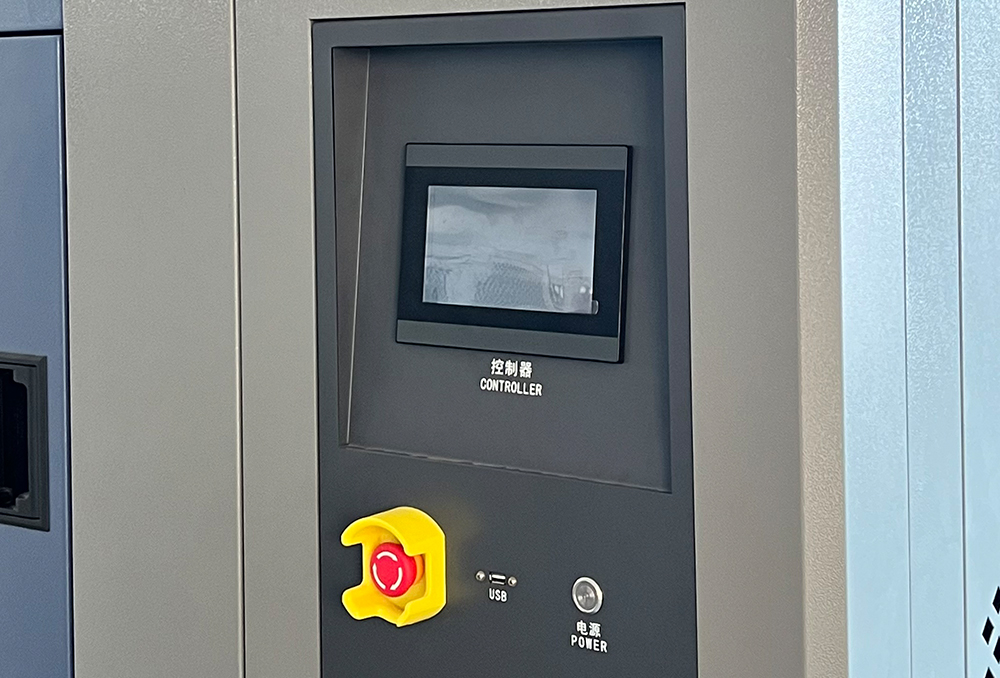

Controller	Touch screen controller / Supports multiple languages / Programmable systems

Data storage and functional interface				USB data interface: USB storage interface,
				TCP/IP communication interface: RJ45 data interface
Power supply				AC3 380V 50Hz

The 3-zone thermal shock test chamber is used to test the degree of load-bearing of products in instantaneous continuous high and very low-temperature environments and to test the chemical changes or physical damage caused by them in the shortest possible time.It is the ideal test equipment for testing electronic components, metals, chemical materials, the aerospace industry, BGA, PCB boards, IC, semi-conductive ceramics, etc.

Features Of 3 Zones Type Thermal Shock Chambers:

Three zones: high temp. zone, test zone,and low temp. zone, in the room temp. the state can be operated to test products.
Horizontal airflow design assures uniform results
Adopt a binary cooling system,with a quick cooling effect,the cooling method is water or air-cooled.
Excellent cooling capacity, and the impact exposure time in both high and low temp. zones can reach 15 min.
Defrosting round can reach more than 200 cycles,which can ensure the accuracy of the experiment.
With USB and RS-232 C communication ports, it can be connected to a PC for control.

Test Standard Of 3 Zones Type Thermal Shock Chambers::

● IPC TM-650 2.6.6-1987 Printed Circuit Board Temperature Cycling
● Bellcore-Bell Communications Laboratories
● GJB 150.5-86-Environmental testing of military equipment Temperature shock test
● GR-1221-CORE-Bellcore Communications Laboratories
● JIS C0025-1988-Temperature Change Test for Electrical and Electronic Appliances
● MIL-STD-202F-Three-Case Gas Temperature Shock Test for Electronic and Electrical Components
● MIL-STD-883E-Reliability Test AFSL Temperature Cycle Tests
● IEC 68-2-14 Basic Environment Part 2: Section 14: Test N: Temperature Change
