LUGONG
Equipment model | LG-IPX34-600 | LG-IPX34-800 | LG-IPX34-1000 |
Working size: | 600*600*600 W*H*D(mm) | 800*800*800W*H*D(mm) | 1000*1000*1000W*H*D(mm) |
Outer carton size approx.: | 1450*1750*1200mm | 1500*1800*1350mm | 1550*2300*1500mm |
Water spray ring diameter | 400mm | 600mm | 800mm |
Water pipe diameter | φ16mm | ||
The diameter of the nozzle | φ0.8 mm | ||
Aperture spacing | 50mm | ||
Swing tube swing: | 1-220° (60° 90° 130° adjustable) stepper motor control | ||
Rainwater pressure: | 50~300kpa (adjustable) | ||
Test bench size: | ¢400mm | ||
Swing pipe: | SUS304 stainless steel plate | ||
Protection device: | leakage protection | ||
Power supply (V): | 220V | ||
Power (KW): | 3KW | ||
The shell material inside the box is made of high-quality stainless steel plate SUS304 | |||
A large area of visible glass door is convenient for observing the condition of the test sample in the test box; | |||
The bottom of the test chamber adopts high-quality fixable PU movable wheels, which is convenient for users to move; | |||
Sample stage with adjustable speed; | |||
Water filtration device | |||

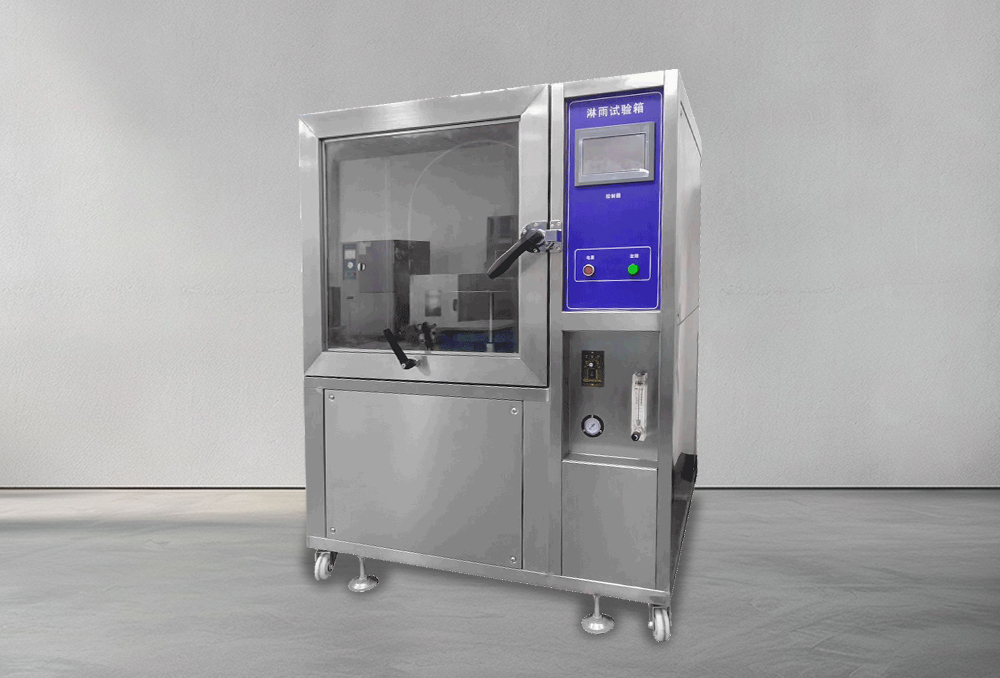

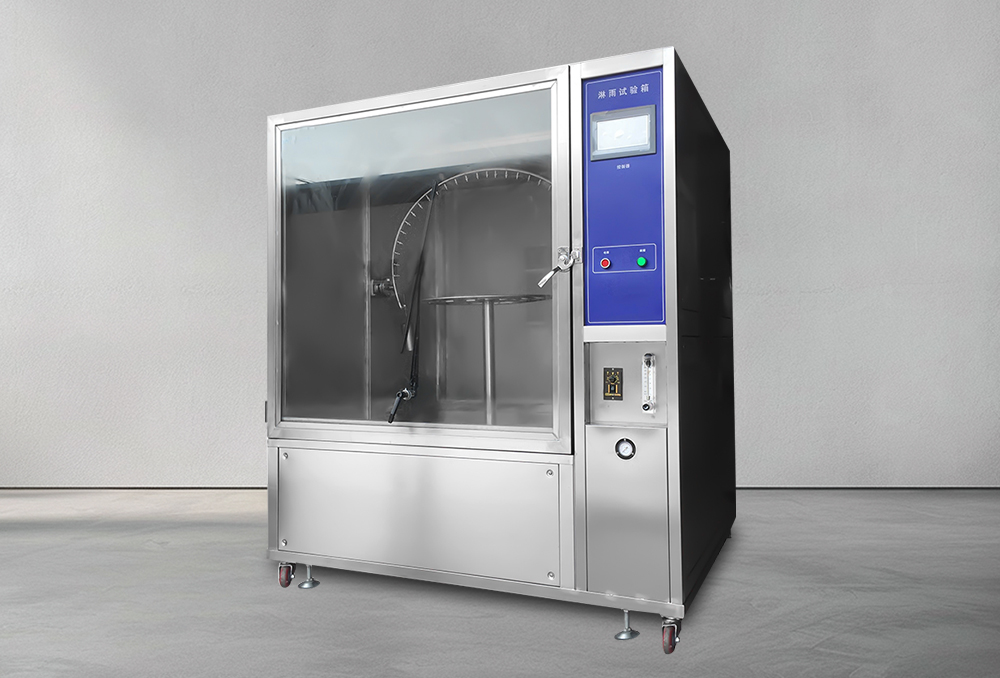

The rain test chamber is mainly suitable for waterproof performance testing and IP waterproof level testing of communication products, automotive components (such as car mirrors, car speakers, automotive electronics, car lighting, car lamps, motorcycle lamps, motorcycle mirrors), outdoor lighting and signal devices, and other products.
The waterproof test box is made of SUS304 stainless steel plate, and the water tank is made of SUS304 stainless steel plate with low and full water indicators. The spray pipe is made of seamless stainless steel pipe, and the turntable is made of stainless steel. The nozzle is detachable and equipped with a plug, making it easy for customers to replace according to the required number of spray holes according to the standard. The test chamber door is a single door, left opening, with a large observation window and equipped with a wiper brush
The box type rain test box, waterproof test box, and waterproof testing machine meet the standards of GB4208, IEC60529, GJB150, GB10485 IPX4 IPX3
Equipment model | LG-IPX34-600 | LG-IPX34-800 | LG-IPX34-1000 |
Working size: | 600*600*600 W*H*D(mm) | 800*800*800W*H*D(mm) | 1000*1000*1000W*H*D(mm) |
Outer carton size approx.: | 1450*1750*1200mm | 1500*1800*1350mm | 1550*2300*1500mm |
Water spray ring diameter | 400mm | 600mm | 800mm |
Water pipe diameter | φ16mm | ||
The diameter of the nozzle | φ0.8 mm | ||
Aperture spacing | 50mm | ||
Swing tube swing: | 1-220° (60° 90° 130° adjustable) stepper motor control | ||
Rainwater pressure: | 50~300kpa (adjustable) | ||
Test bench size: | ¢400mm | ||
Swing pipe: | SUS304 stainless steel plate | ||
Protection device: | leakage protection | ||
Power supply (V): | 220V | ||
Power (KW): | 3KW | ||
The shell material inside the box is made of high-quality stainless steel plate SUS304 | |||
A large area of visible glass door is convenient for observing the condition of the test sample in the test box; | |||
The bottom of the test chamber adopts high-quality fixable PU movable wheels, which is convenient for users to move; | |||
Sample stage with adjustable speed; | |||
Water filtration device | |||
The rain test chamber is mainly suitable for waterproof performance testing and IP waterproof level testing of communication products, automotive components (such as car mirrors, car speakers, automotive electronics, car lighting, car lamps, motorcycle lamps, motorcycle mirrors), outdoor lighting and signal devices, and other products.
The waterproof test box is made of SUS304 stainless steel plate, and the water tank is made of SUS304 stainless steel plate with low and full water indicators. The spray pipe is made of seamless stainless steel pipe, and the turntable is made of stainless steel. The nozzle is detachable and equipped with a plug, making it easy for customers to replace according to the required number of spray holes according to the standard. The test chamber door is a single door, left opening, with a large observation window and equipped with a wiper brush
The box type rain test box, waterproof test box, and waterproof testing machine meet the standards of GB4208, IEC60529, GJB150, GB10485 IPX4 IPX3
