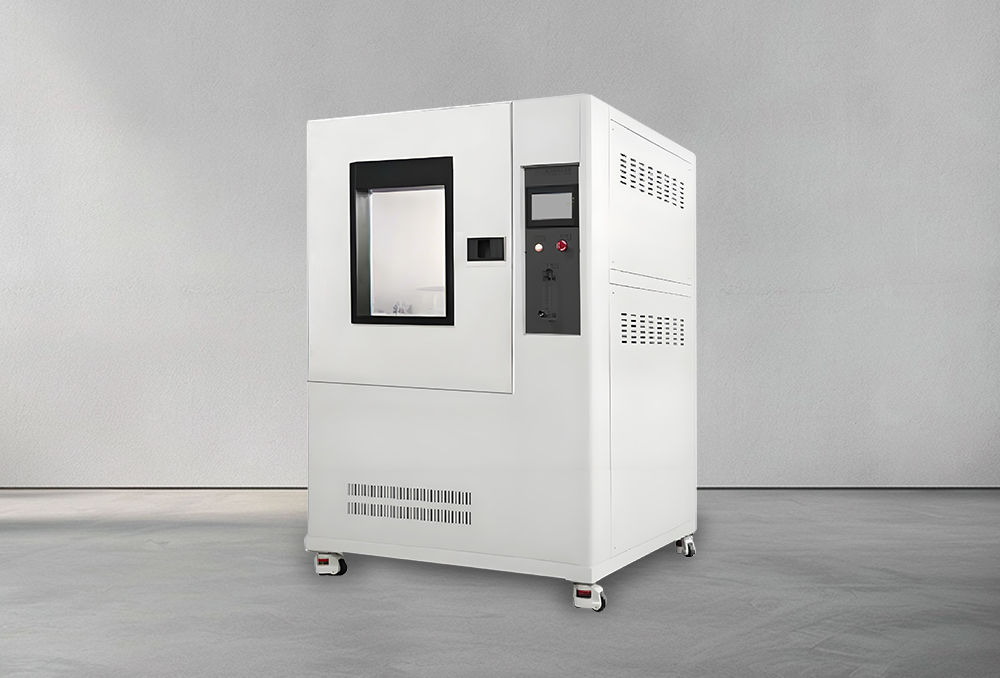

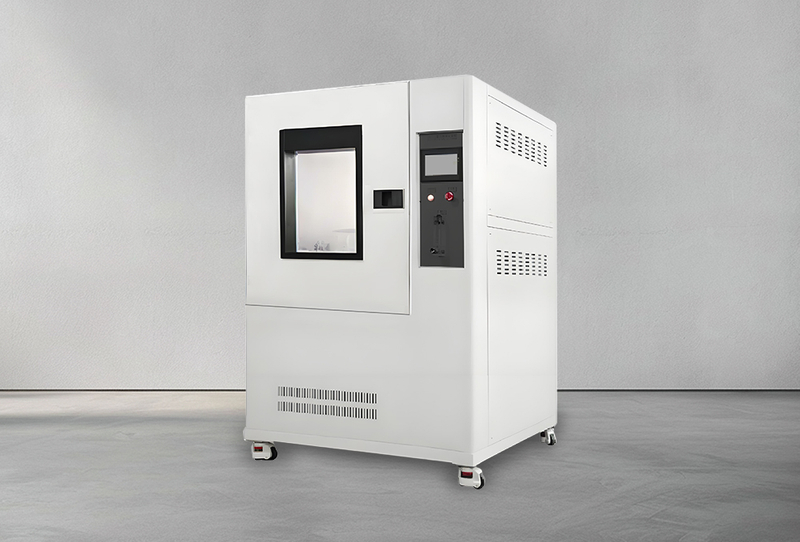

Rain Test Chamber-lPX Rain Spray Test Chamber

Rain Test Chamber-lPX Rain Spray Test Chamber

The main function of the Waterproof Rating Comprehensive Test Chamber is to test the physical and other related properties of electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles, and their parts under simulated weather conditions such as rain, splashing, and water spraying. After testing, the performance of the product is evaluated through calibration to determine whether it meets the requirements, in order to facilitate the design, improvement, calibration, and factory inspection of the product.

Quantity:
Availability:





Inquire Add to Basket

Brand:
LUGONG

Product Description

Specification

Inner box size	Length 1000depth 1000height 1050mm
Outer dimensions Approx.	Length 1350depth 3400height 1750mm
Rotary table diameter	¢400mm (can be equipped with ¢200mm)
Maximum load capacity of rotary table	50KG
Rotary table lifting height	200
Rotary table tilt	0° or 15° (horizontal)
Rotary table speed	1 -5r/min (precise and adjustable)
Rotation mode of turntable	Always turning forward
Flow regulation method	Using a flow meter with a regulating panel to manually adjust the flow rate
Test time	0-999 minutes
Total weight of equipment	250kg
IPX12 section - technical data
Drip board area	600 * 600mm
IPX12 spray hole size diameter	0.4mm
Distance between drip holes	20 * 20 mm
Rainfall	IPX1=1mm/min; IPX2=3mm/min
Drip board lifting method	cannot be raised or lowered (fixed type)
IPX34 Part - Technical Parameters
Swing tube radius size	R400mm (R200mm can be added)
R400 swing tube flow rate	IPX3=1.1L/min; IPX4=1.8L/min
Spray aperture size	0.4mm
Spray aperture spacing	50mm
Swing tube inner diameter	15mm
Swing tube angle	120 º (IPX3), 350 º (IPX4) or custom setting
Swing speed of	240 ° back and forth for 4 seconds, 720 ° back and forth for 12 seconds (precise control) or customized
IPX56 Part - Technical Parameters
IPX5 water spray aperture	6.3mm
IPX6 water spray aperture	12.5mm
IPX5 spray flow rate	12.5 ± 0.625
IPX6 spray flow rate	100 ± 5L/min
Water pressure (Mpa)	adjusted according to the specified water flow rate
Spray distance	2.5 meters (distance between nozzle and turntable center)
Spray gun swing height	Settable
Spray gun swing drive	stepper motor
Electrical parameters
Equipment power supply	380V
Test sample power supply	220V
Equipment power	3.0KW
Safety protection function	Leakage protection, water shortage protection, short circuit protection

Equipment Overview

The main function of the Waterproof Rating Comprehensive Test Chamber is to test the physical and other related properties of electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles, and their parts under simulated weather conditions such as rain, splashing, and water spraying. After testing, the performance of the product is evaluated through calibration to determine whether it meets the requirements, in order to facilitate the design, improvement, calibration, and factory inspection of the product.

Enforce the standard

Comply with the requirements of IEC60529:1989+A1:1999 +A2:2013 "Degrees of protection provided by enclosures (IP Code)", "Enclosure protection level (IP code)" 14.2.1, 14.2.2, 14.2.3, 14.2.4 clauses

Equipment features

1. Suitable for conducting IPX1, IPX2, IPX3, IPX4, IPX5, IPX6 waterproof rating tests on products.
2. The shell is processed from high-quality domestic steel plates and coated with baking paint on the surface, which is beautiful and durable.
3. The inner box, turntable, swing tube, etc. are all made of SUS304 # stainless steel plate to ensure long-term use without rusting.
4. Box type structure; Comes with a built-in water tank for circulating water; The water storage tank is equipped with a water level float ball valve, which automatically controls the water inlet and has a low water level alarm detection.
5. There is a transparent observation window (made of tempered glass material) on the door, and LED lighting is installed inside the box for easy observation of internal testing conditions.
6. IPX12: The drip tank adopts a vacuum design and is made of stainless steel material; The nozzle contact position adopts a brass conical design, which is convenient for installing the spray nozzle.
7. IPX12: It has the function of compressed air drying. After the test is completed, excess water in the drip box can be drained to avoid water accumulation and scaling, which may block the pinhole. (Note: The user needs to provide a gas source)
8. IPX34: The swing tube drive adopts high-quality domestic servo stepper motors, with precise adjustable swing tube speed and angle, and no problem of out of step (out of step: it can cause the swing tube to malfunction, collide with the middle turntable shaft, and cause equipment damage)
9. IPX56: manufactured according to the specifications of IEC60529
